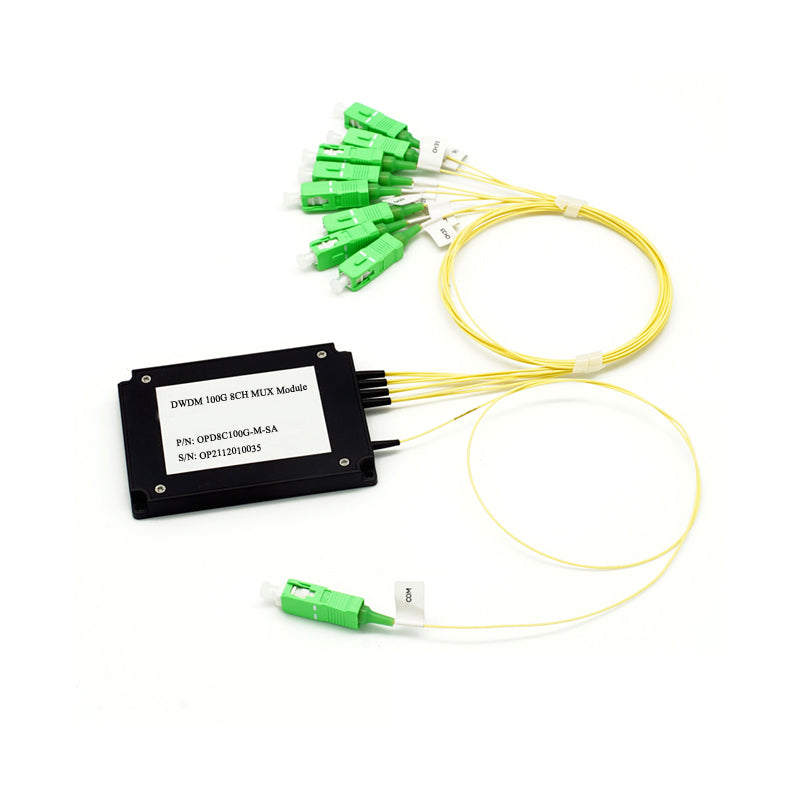

8 Channel DWDM Mux/Demux OSP Cassette 100x80x10mm


DWDM, Single (Mux or Demux), Any 8 of 100GHz ITU Grid C21~C60, Outdoor cassette ABS (100x80x10mm), 900um 1.5m pigtail with label, Thin Film Filter Technology

The 8-channels 100Ghz DWDM Mux or Demux is a low loss, high density passive optical module which based on the thin film coating technology. Its package with ABS box 100x80x10mm LC/UPC pigtailed for OSP (Outdoor Use). The DWDM Mux Demux Module is ideal for long-haul transport of fiber optic singals all over a single fiber.

We can offer various cassette size, please feel free to contact us for customized size. (sales@lightoptics.co.uk)
Cassette A (70x45x8.5mm)
Cassette B (75x85x8.5mm)
Cassette C (120x85x8.5mm)
Cassette D (150x110x8.5mm)
Cassette E (170x120x8.5mm)
Cassette F (100x80x10mm) Standard Type
Cassette G (90x85x16mm)


Parameter Unit DWDM Mux Demux
Channel Number -- 8-Channels/Wavelengths
Operation Wavelength nm Any 8 of C21~C60 +Upgrade Port
Channel Central Wavelength nm ITU-T Grid @DWDM
Channel Passband nm 0.8 (100Ghz)
Insertion Loss @PB dB <2.8
Isolation @Adjacent Channel dB >30
Isolation @Non-adjacent Channel dB >40
Isolation @Reflect Channel dB >15
Passband Ripple dB <0.5
Polarization Dependent Loss dB <0.15
Polarization Mode Dispersion ps <0.1
Directivity & Return Loss dB Directivity: >50 Return Loss:>45
Power Handling mW <500
Connector -- LC/UPC or SC/APC
Fiber Type -- SMF-28e or Customized
Operating Temperature -20 ~ +70
Storage Temperature -40 ~ +85
Package Dimension mm 100x80x10mm
