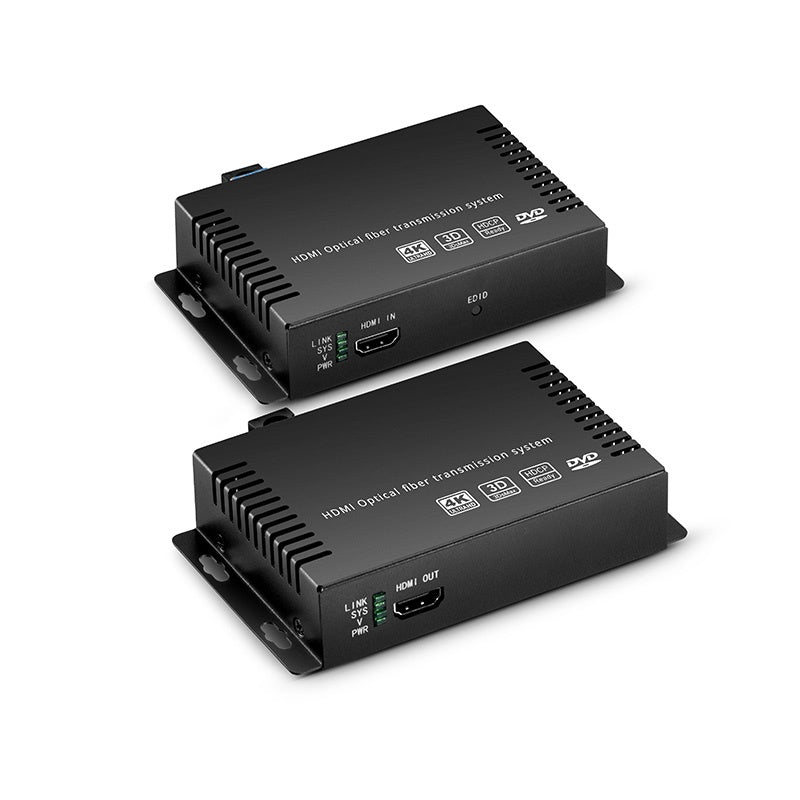

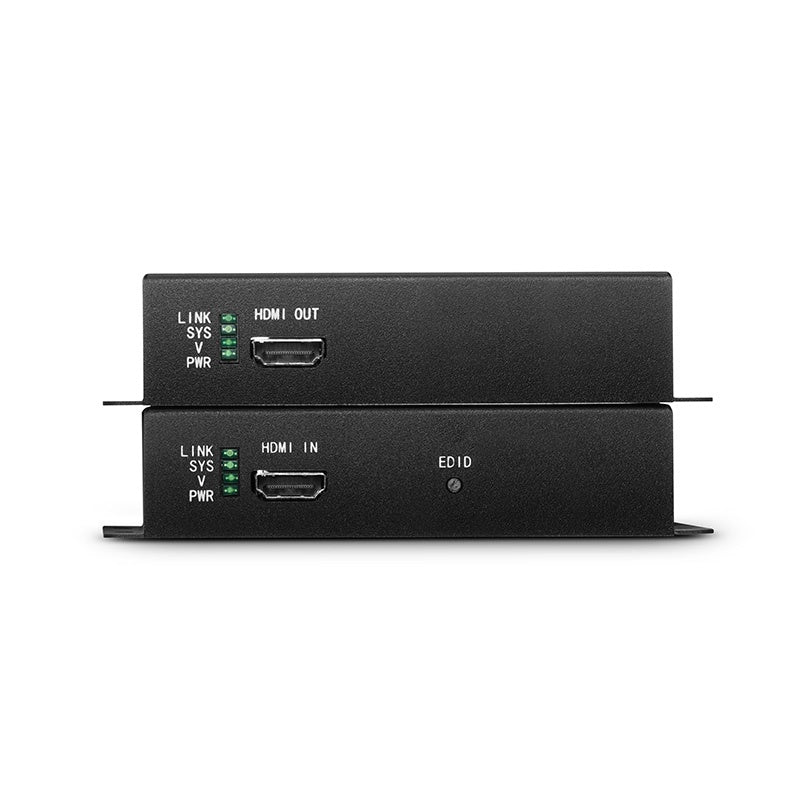

4K HDMI Extender Tx/Rx Set with Audio/EDID and RS232 Data over Fiber Optic


Max Resolution 3840*2160@60Hz supported 4K HDMI 2.0 Extender and Receiver TX/RX Set over LC Fiber Optic Cable up to 10km

Note: This HDMI Extender Set support max transmission distance over single mode fiber is 60km, depend on the SFP transceiver, if you need other distance choice such as 20km, 40km, 60km, please contact us.

The 4K@60Hz HDMI 2.0 Extender Set provides long haul transmission of HDMI, audio signals over a single fiber. Engineered for reliability and exceptional high resolution image performance, it uses all-digital technology to deliver perfect pixel-for-pixel transmission of HDMI computer-video images up to 3840*2160 resolution. Designed specifically for AV systems, the Extender includes many integrator-friendly features such as an EDID emulation mode, RS-232 control, and real-time system monitoring.

Product Features

  • Delivers UHD Picture Quality at Resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
  • Supports Ultra Long Distance Transmission up to 10 KM
  • Supports LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio
  • Local HDMI Port Allows Displays with Different Resolutions without Affecting 4K Signal
  • Plug-and-play Operation with No Software Required for Easy, Immediate Installation
Product Specifications
Signal Type HDMI Max Resolution 3840*2160@60Hz
Total Data Rate 10Gbps Transmission Distance 10km

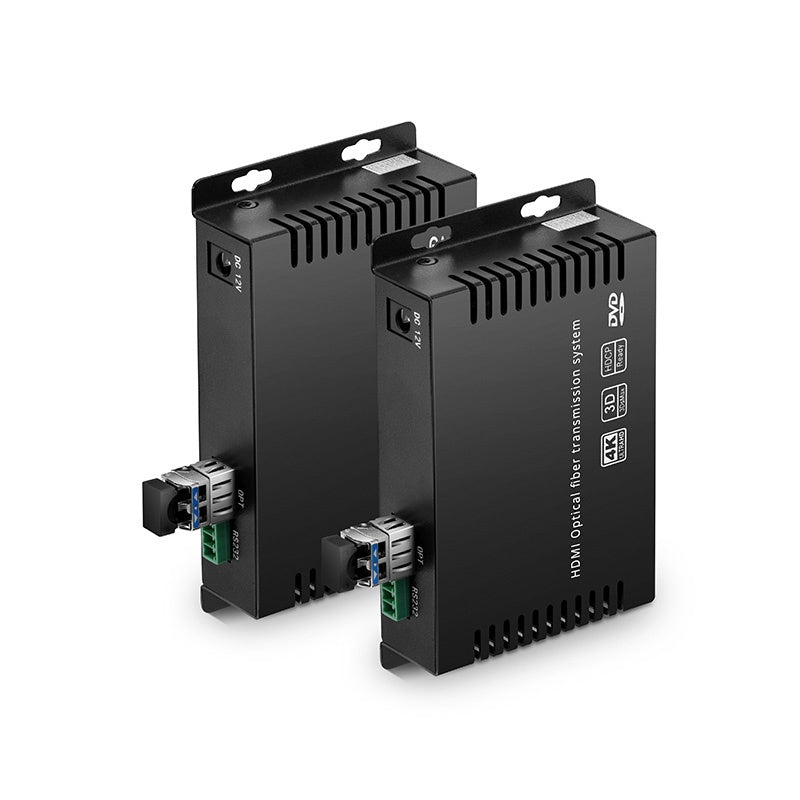

Video Input Connector (1) HDMI Type A 19-pin Female Optical Connectors BIDI SFP & LC Simplex
Craft Uncompressed Technology Dimensions (HxWxD) 5.1” x3.1” x1.1”(130x79x28mm)
