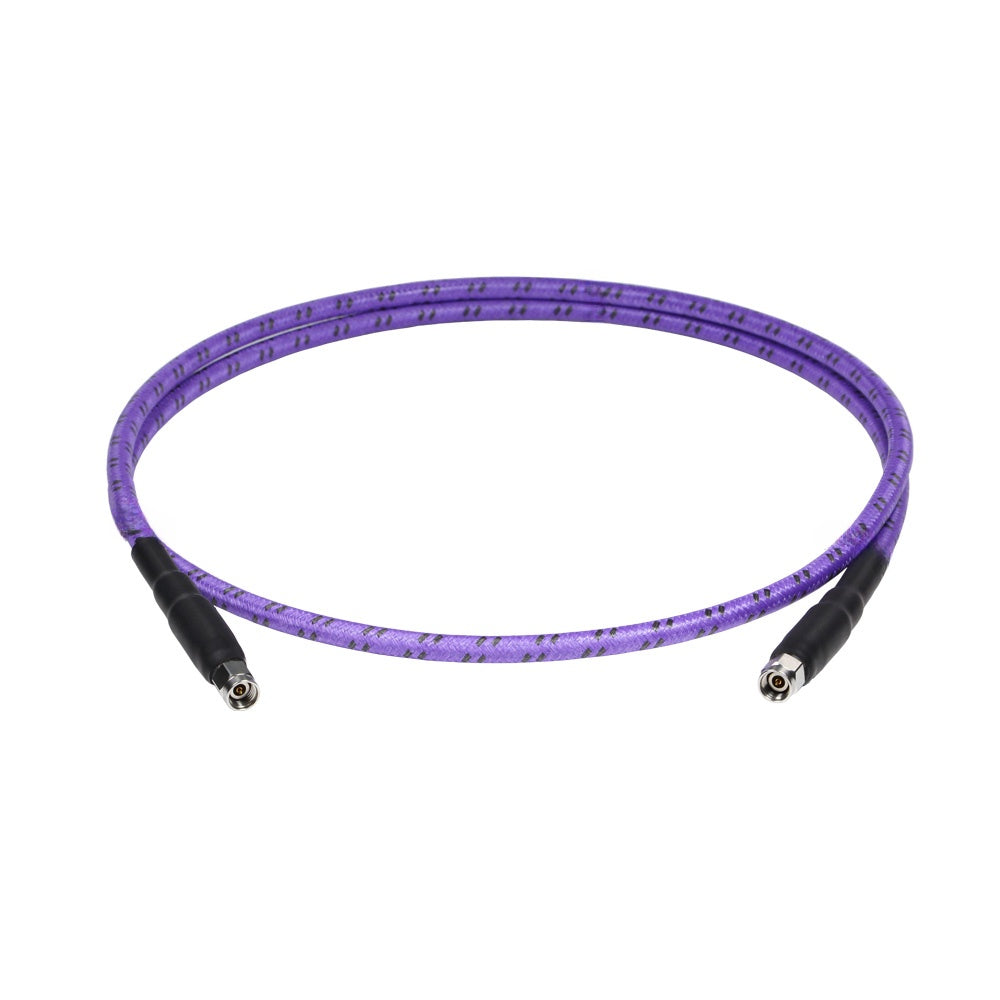

DC to 40 GHz 2.92 mm Male to 2.92 mm Male Microwave Test Cable Assembly 24'' length
DC to 40 GHz 2.92 mm Male to 2.92 mm Male Microwave Test Cable Assembly Using T24KB Low-Loss Ruggedized Flexible Cable; 24'' length
The 2.92mm male to 2.92mm male cable features 50 Ohm 2.92 mm male connector at one end and a 50 Ohm 2.92 mm male connector at the other end. Our Armor microwave & RF test cable Assemblies are a high-precision tensile and torsion-resistant armored cable assembly (integrated armor) , Which provide excellent loss and phase stability even after cable flexure for test applications that require precise, repeatable measurements, and electrical performance up to 18Ghz/26.5GHz/40GHz/67GHz/110 GHz.
Product features
Ruggedized Cable Structure: Excellent durability.
High Phase and Amplitude Stability: Maintained even with flexure and movement.
Light Weight, Superior Flexibility, and Low Loss: Optimized for performance.
Excellent Insertion and Return Loss: Superior electrical characteristics.
Absolute Time Delay Matched: ±1 ps.
Precise and Repeatable Measurements: Ensures accuracy.
Frequency Range: Up to 40 GHz.
Typical Applications
Vector network analyzers (VNAs)
5G test and interconnection
Antenna ranges
Anechoic chambers
Thermal vacuum chambers
Wireless telecommunication module testing
Electromagnetic compliance testing
Automated test equipment
High speed digital test
Military and Defense appplications
Research & development labs
Key Specifications
| Connector Series 1 | 2.92mm Male Straight |
| Connector Series 2 | 2.92mm Male Straight |
| Cable | T24KB |
| Cable Jacket diameter | 4.8mm |
| Attenuation | 4.44db/meter @40ghz |
| Impedance | 50 Ohm |
| Static Bending Radius | 30mm |
| Dynamic Bending Radius | 50mm |
| Frquency | DC~40GHz |
| Impedance | 50Ohm |
| VSWR | <1.25@40GHz |
| Time delay matched | <±1ps |
| Temperature Phase Stability | ±3°@40GHz |
| Mechanical Phase Stability | ±0.03dB@40GHz |
| Shield Efficiency | ＞90db |
| Propagation Velocity | 81% |
| Length | 24″ 36″ 48″ 72″ or customized length |
