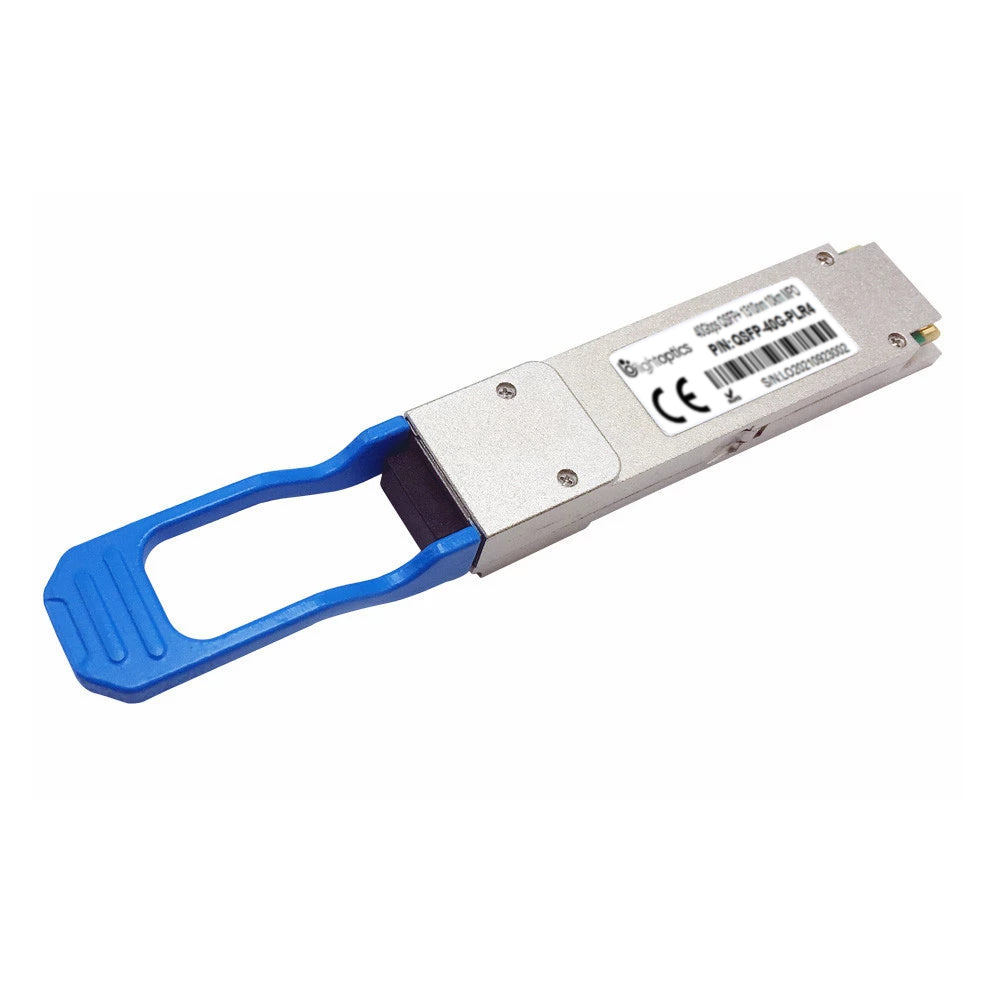

40GBASE-PLR4 QSFP+ 1310nm 10km QSFP-40G-PLR4 MTP/MPO Transceiver
100% OEM Compatible 40GBase-PLR4 (4x10GBase-LR) QSFP+ Transceiver (SMF, 1310nm, 10km, MPO, DDM, Commercial Temp)
This 40GBASE-PLR4 QSFP+ Transceiver is designed for using in 40GBASE Ethernet throughput up to 10km over 12 fibers single mode fiber (SMF) MPO/MTP fiber optic cables by a wavelength of 1310nm. It provides high-density and low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications. It is fully compliant with the QSFP+ MSA and IEEE 802.3ae 10GBASE-LR/LW and OTN data rates OTU2, OTU1e, and OTU2e per the ITU. standard. The QSFP-40G-PLR4 supports 40G to 4x10G breakout application by using 8 fibers MTP/MPO to 4x LC duplex singlemode fiber optic cables.
Features
• High Channel Capacity: 40 Gbps per optics
• Up to 10km links on single mode fiber
• 4 channels 1310nm DFB laser
• 4 channels PIN photodetector array
• Electrically hot-swappable
• QSFP+ MSA compliant
• Power dissipation < 2.5 W
• Supports Digital Diagnostics Monitoring
• Single MPO connector receptacle
Specification
| Compatible OEM Part Number | QSFP-40G-PLR4 | Form Factor | QSFP+ PSM4 |
| Cable Type | SMF MPO-12 | MPO-8 Breakout | Data Rate | 41.2 Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | 4x10Gb/s DFB transmitter |
| Transmitter Power | -6 ~ +1 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -14.5 dBm | Receiver Overload | > 1 dBm |
| Power Budget | 4.5dB | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.09 kg |
