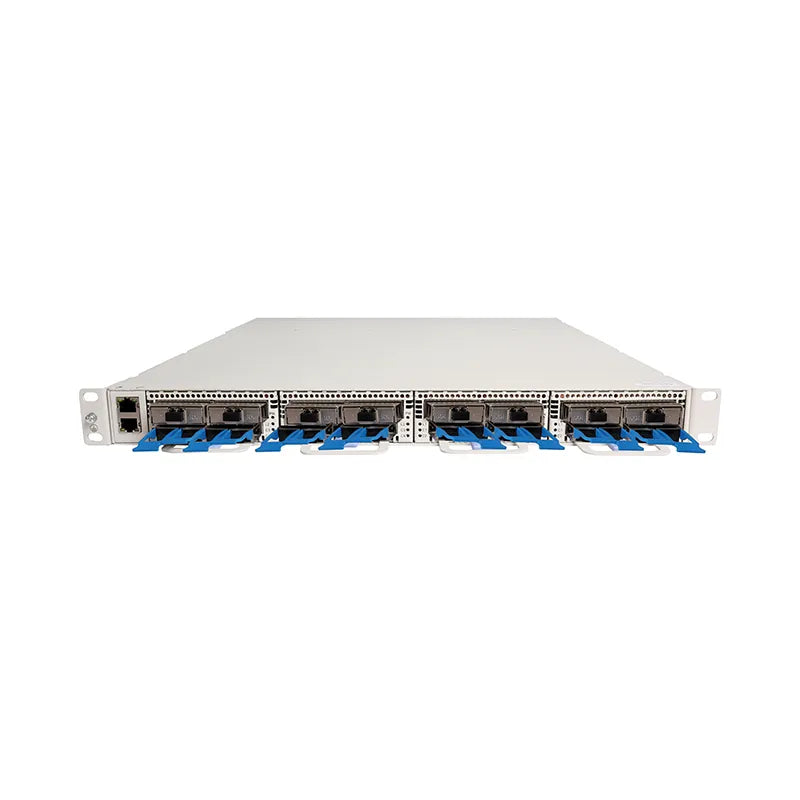

1U Rack Chasis for 200G/400G CFP2 Muxponder
4-slots 400G CFP2 Muxponder, 16*100G, total 1.6T Transmission 1U Rack Chassis
Product Features
- Max support 16x100G for client side, 8x200G or 4x400G for line side in transmission. Total max is 1.6Tbps(3.2Tbps on bidirectional) in 1U device.
- Achieve higher transfer capacity through device stacking. Maximum up to 19.2Tbps (200G*96ch@50GHz) or 25.6Tbps (400G*64 75GHz or 400G*48 100GHz)
- 1U chassis modular design, single board adopts hot-swappable design, supports smooth upgrade, and can flexibly expand or delete services according to needs.
- Dual power supply, compatible with AC or DC power supply DC-48V.
- Complete network management protocol: supports WEB, SNMP, CLI, TLI and other network management interfaces.
- Support dual network management cards, 1+1 network function.
Product Specifications
|
Parameter |
Descriptions |
|
|
Maximum capacity of a device |
8X 200G/ 4X400G 1.6Tbps |
|
|
Line side modulation mode |
DP-QPSK@100G DP-16QAM@200G; DP-8QAM@200G; DP-QPSK@200G DP-16QAM@400G |
|
|
Line side protocol |
SD-FEC/OpenROADM/OpenZR+ |
|
|
Service access type |
100GE、100GE KR4、OTU4、FlexE、OTUCn |
|
|
Standard network management function |
Support alarm real-time and historical query; support real-time monitoring of performance, real-time monitoring of coherent optical performance parameters and OSNR, adjustable VOA optical power, 100G_200G_400G multi-service access and free switching, automatic laser shutdown function (ALS), arbitrary channel spacing. Adjustable technology, up to 96 waves (@100G, @200G 50GHz) or 64 waves (@400G 75GHz), etc. |
|
|
Enhanced optional features |
Support 1000+ alarm real-time and historical query; support 1000+ performance real-time monitoring and 15-minute and 24-hour performance statistics function, Ethernet RMON statistics function, support LLDP monitoring function, support DM delay test function, support PRBS bit error test function |
|
|
Physical Network Topology |
chain, star, ring |
|
|
Network management method |
SNMP、CLI、WEB、SDN、NMS |
|
|
Environmental requirements |
Operating temperature |
-5℃~45℃ |
|
Storage temperature |
-40℃~85℃ |
|
|
Relative humidity |
5%~95% non-condensing |
|
|
Size |
446(W)x46(H)x538(D) (mm) |
|
|
Power requirements (nominal) |
220V/AC, 50Hz; -48V/DC and 280VHVDC power supply (optional) |
|
|
Power consumption |
<800W |
|
