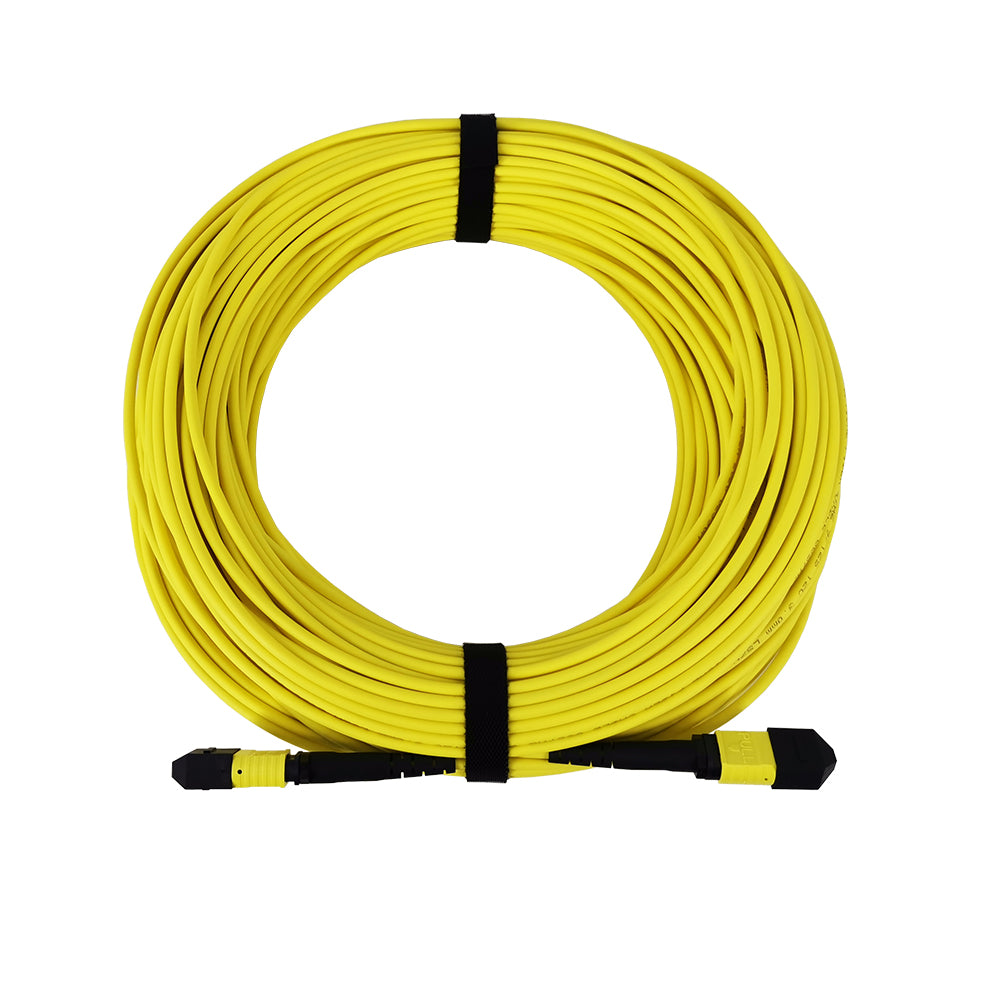

24 Fibers MPO/MTP APC Female 9/125 Singlemode Fiber Trunk Cable

Cable Length :
Polarity :

24 Fibers MPO/MTP APC Female to MPO/MTP APC Female 9/125 Singlemode Fiber Trunk Cable

MPO/MTP trunk cable assemblies are made with the highest quality cable and components. Our MPO/MTP termination process includes an APC Polish and delivers uniform height and positioning for maximum physical contact for. This promotes consistently low insertion loss and excellent return loss characteristics across the entire 24 fiber interface. Our assemblies are made with plenum rated round mini-distribution cable for flexibility in all directions. Our assemblies come to you fully tested, ready to install, and are RoHS compliant.

NOTE: Female to female configuration is suitable for cassette to cassette applications. Most 24 strand cassettes have two 12 port slots and would require a 24 strand trunk cable.

Product Specifications

Connector A MPO Female (pinless) Connector B MPO Female (pinless)
Fiber Mode  24 fibers OS2 9/125 μm Wavelength 1310/1550 nm
Single Mode Class OS2 RoHS Compliancy Status Compliant
Polish Type APC to APC Minimum Bend Radius 10 mm
Insertion Loss 0.35 dB Max. (0.15 dB Typ.) Return Loss ≥ 60 dB
Attenuation at 1310 nm ≤ 0.32 dB/km Attenuation at 1550 nm ≤ 0.18 dB/km
Jacket OD 3.0 mm Cable Jacket LSZH
Installation Tensile Load 66 N Long-Term Tensile Load 80/240 N
Storage Temperature -40°C to 85°C Operating Temperature -10°C to 70°C
