24 Fibers MPO/MTP UPC Female Multimode OM4 Fiber Trunk Cable

$98.73
Cable Length :
Polarity :
$98.73
Tags:

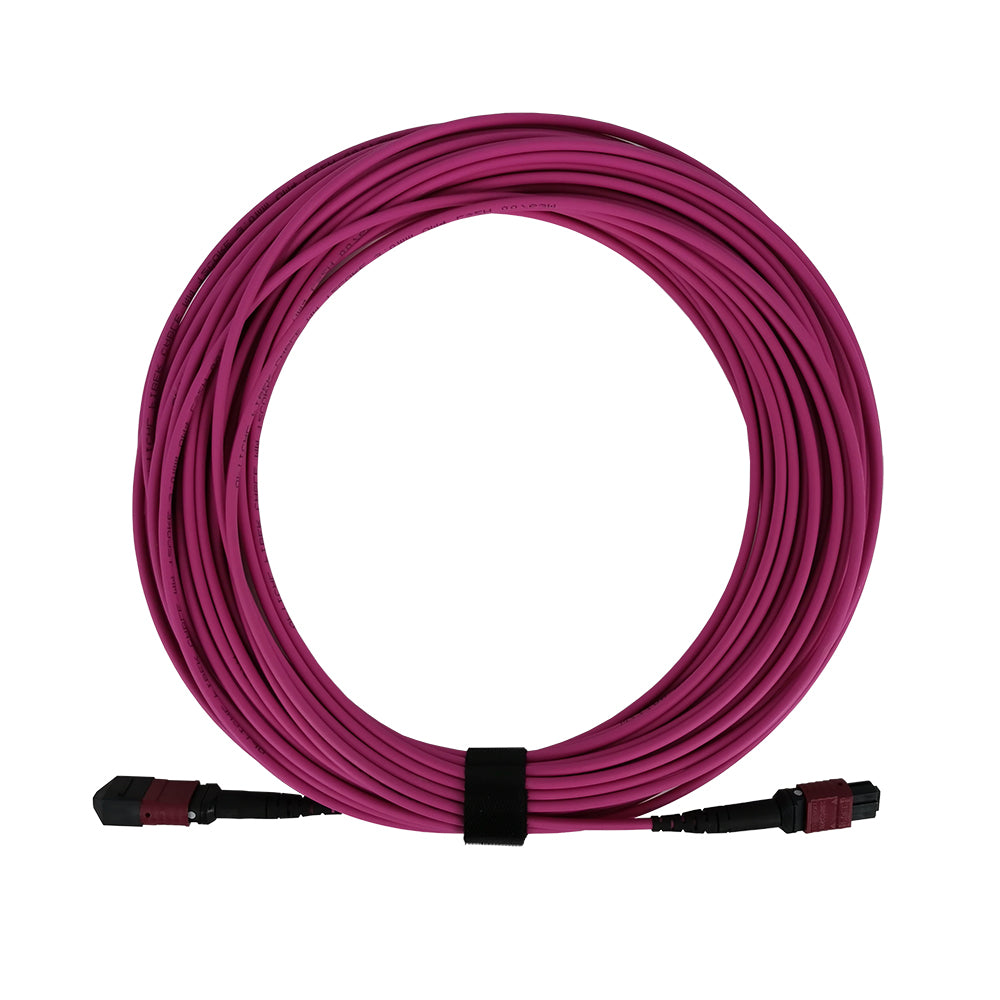

24 Fibers MPO/MTP UPC Female to MPO/MTP UPC Female Multimode OM4 Fiber Trunk Cable

Achieve higher density, greater throughput, and less cabling by upgrading your fiber infrastructure to MTP/MPO 24-strand fiber connectors and cabling. Our MTP/MPO rated fiber jumpers are precision made for maximum performance and longevity. Each MTP/MPO patch cord is the equivalent of pulling twelve standard duplex cables. The sleek MTP/MPO connector design reduces tangling and snagging while routing each termination. The push-pull lock mechanism ensures a reliable connection and makes it easy to engage and disengage the connector without sacrificing security.

Please note: The MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Product Specifications

Connector A MTP Female (pinless) Connector B MTP Female (pinless)
Fiber Mode  24 fibers OM3 50/125 μm Wavelength 850/1300 nm
40/100G Ethernet Distance 150 m at 850 nm 10G Ethernet Distance 400 m at 850 nm
Multi Mode Class OM4 RoHS Compliancy Status Compliant
Polish Type UPC to UPC Minimum Bend Radius 7.5 mm
Insertion Loss 0.35 dB Max. (0.15 dB Typ.) Return Loss ≥ 20 dB
Attenuation at 850 nm ≤ 2.3 dB/km Attenuation at 1300 nm ≤ 0.6 dB/km
Jacket OD 3.0 mm Cable Jacket LSZH
Installation Tensile Load 66 N Long/Short Term Tensile Load 80 N/240 N
Storage Temperature -40°C to 85°C Operating Temperature -10°C to 70°C
