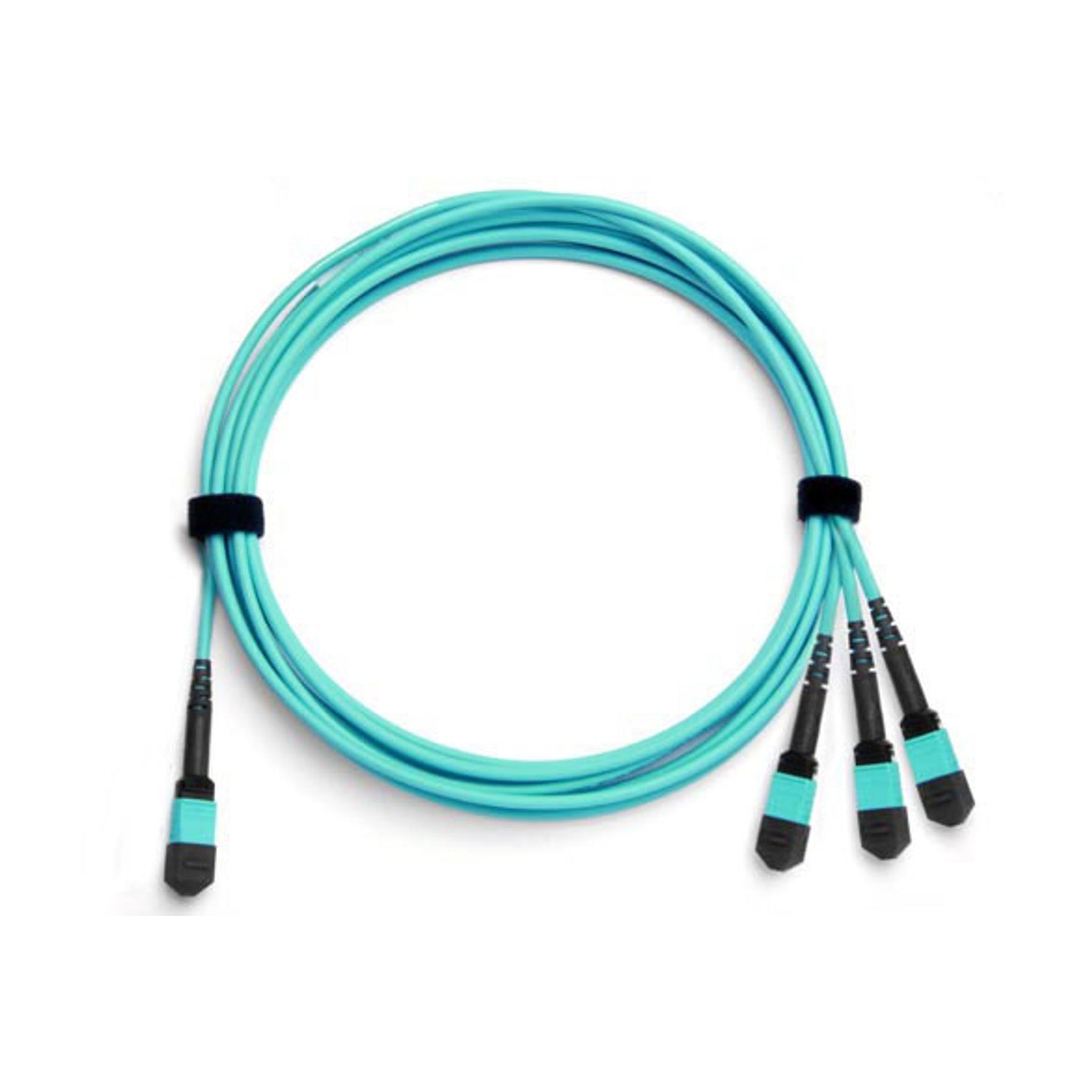

1m 24-Fiber Single MTP/MPO to 3 MTP/MPO-8 Multimode OM3 Fiber Optic Breakout Cable,Method B polarity

$38.70
$38.70
Tags:

24-Fiber Single MTP/MPO to 3 MTP/MPO-8 Multimode OM3 Fiber Optic Breakout Cable; 1m length, Method B polarity

Does the lack of work space have you struggling to maintain your desired bandwidth and data transmission speed? Keep your data center ahead of the curve with a fast, reliable, and more importantly manageable cabling solution with the LightWave 24-Fiber OM3 Single MTP/MPO to 3 MTP/MPO Fiber Optic Fanout Cable.
MTP® brand MPO-style connectors have revolutionized fiber optics, alleviating the headaches of network administrators who are constantly scrambling for cable management space. With this cable, a single MTP brand connector holds 24 strands of OM3 glass fiber, breaking out to 3 connectors on the opposite end holding 8 fibers each. This cable is ideal for 100Gb fiber optics applications, and comes in a "Type B" Rollover polarity scheme.
Using OM3 fiber optics, you are able to transmit data over a 1Gbps link with a 50/125 micron glass fiber over a distance of up to 1000 meters at a wavelength of 850nm, and over a distance of up to 550 meters at 1300nm. For a 10Gbps link, you can transfer data over a distance of up to 300 meters at 850nm.

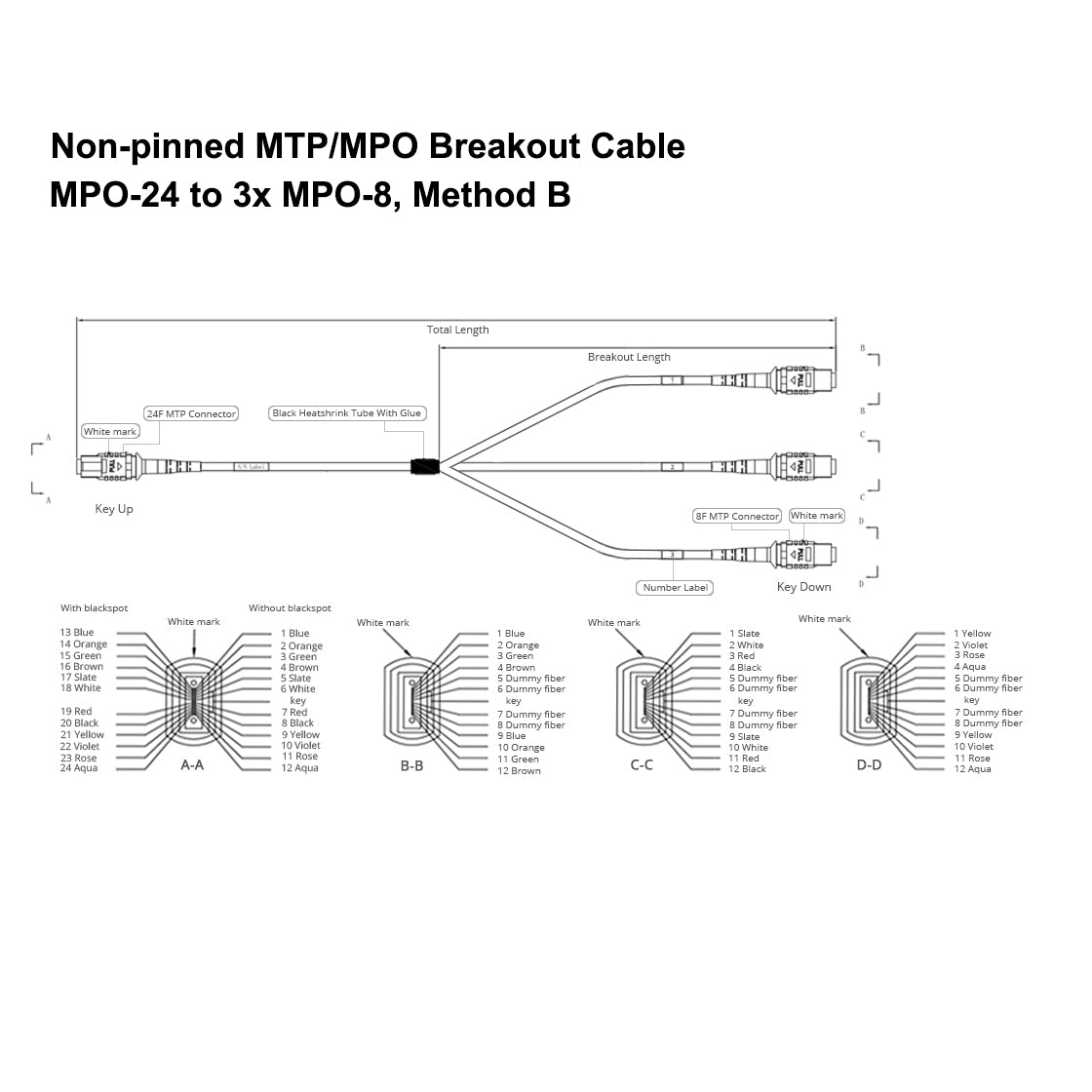

Type B - Rollover: Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth

Note: MTP® is a registered trademark of US Conec Ltd.

Product Specifications

Connector A MPO Female (pinless) Connector B 3x MPO Female (pinless)
Fiber Mode  24 fibers OM3 50/125 μm Wavelength 850/1300 nm
Polish Type (MTP) APC Polish Type (LC) APC
Minimum Bend Radius 7.5 mm RoHS Compliancy Status Compliant
Insertion Loss (LC) ≤ 0.2 dB Return Loss (LC) ≥ 30 dB
Insertion Loss (MTP) 0.75 dB Max. (0.35 dB Typ.) Return Loss (MTP) ≥ 20 dB
Attenuation at 850 nm ≤ 2.3 dB/km Attenuation at 1300 nm ≤ 0.6 dB/km
Jacket OD 3.0 mm Cable Jacket LSZH
Installation Tensile Load 66 N Long/Short Term Tensile Load 80 N/240N
Storage Temperature -40°C to 85°C Operating Temperature -10°C to 70°C
