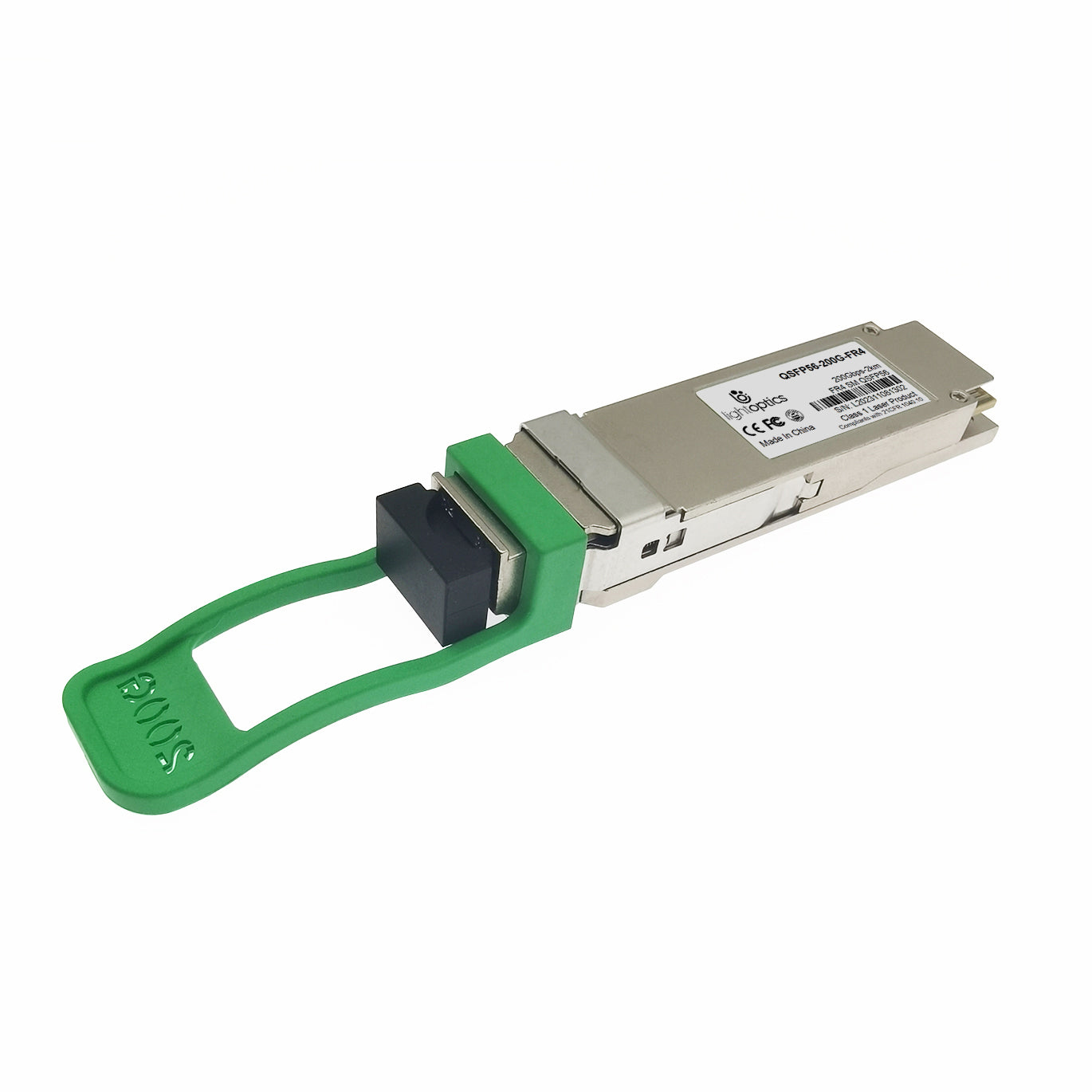

NVIDIA/Mellanox MMS1W50-HM Compatible 200G QSFP56 FR4 PAM4 CWDM4 2km LC SMF FEC Optical Transceiver Module


NVIDIA/Mellanox MMS1W50-HM Compatible 200G InfiniBand HDR QSFP56 FR4 PAM4 Transceiver Module (2 km, λ1271-1331 nm, LC-Duplex, Singlemode)

200G InfiniBand HDR QSFP56 FR4 Transceiver Module is designed for 200GBASE Ethernet link up to 2km over single-mode fiber (SMF) using a wavelength of 1271nm to 1331nm with duplex LC connectors. The module supports four electrical interface channels and operates in 50G PAM4 coding mode, resulting in 200G (4x50G) data rates. It is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024 and SFF-8679 standards. The built-in digital diagnostic monitoring (DDM) allows access to real-time operating parameters. It is suitable for 200G Ethernet, InfiniBand HDR, data centers, and cloud networks.

Product Specifications

Mellanox Compatible MMS1W50-HM Vendor Name LightOptics®
Form Factor QSFP56 Max Data Rate 212.5Gbps
Wavelength 1271nm, 1291nm, 1311nm, 1331nm Max Distance 2km
Modulation Format PAM4 Host Required FEC
Connector Duplex LC Voltage Supply 3.3V
Cable Type SMF DDM Support Yes
Transmitter Type EML CWDM4 Receiver Type PIN
TX Power -4.2~+4.7dBm Receiver Sensitivity < -8.2dBm
Operation Temperature 15 to 65°C (59 to 149 °F) Maximum Power < 6.5W
Protocols QSFP56 MSA, IEEE 802.3bs
Application 200G InfiniBand HDR,200G Ethernet Data Center Interconne
