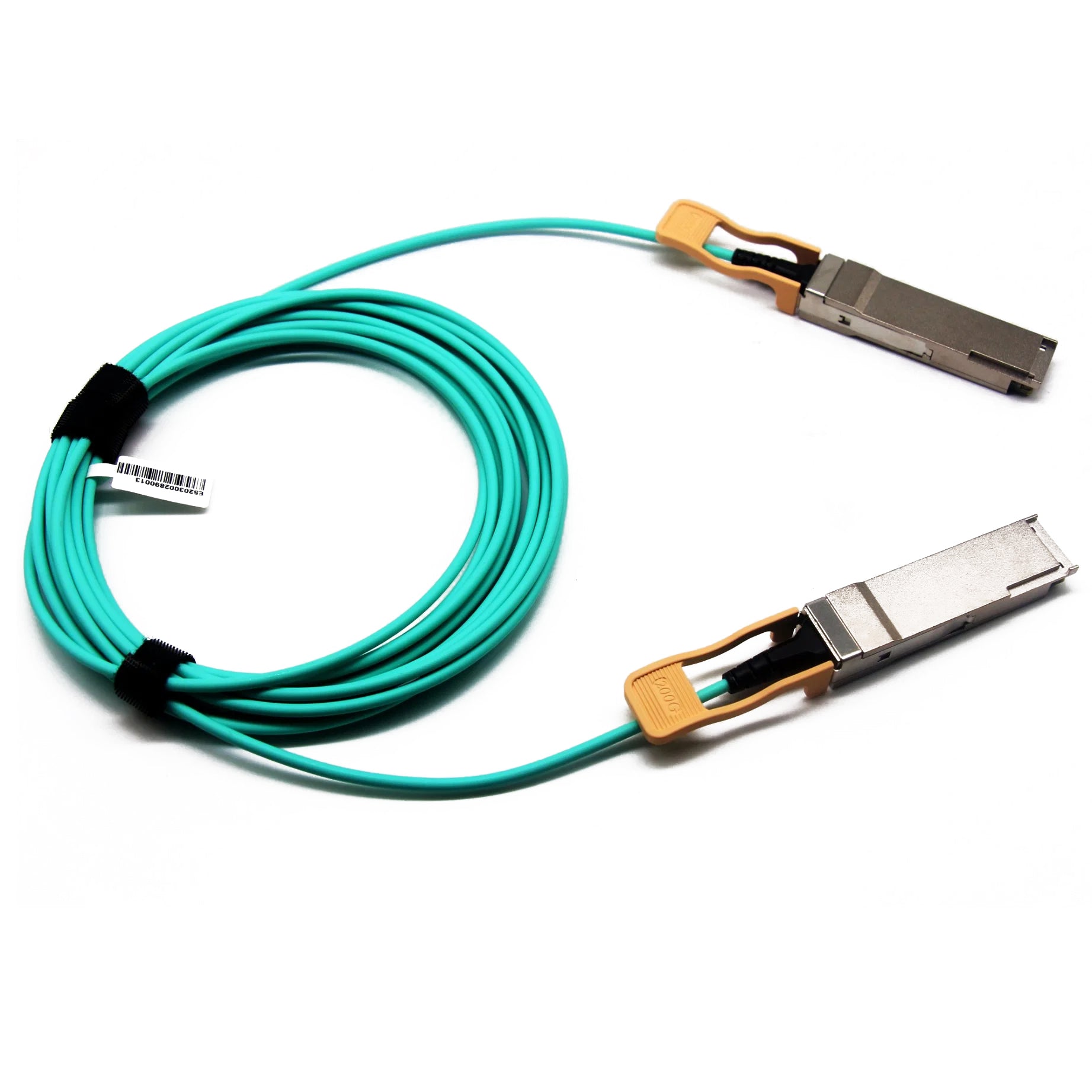

NVIDIA/Mellanox MFS1S00-HxxxV Compatible 200Gb/s QSFP56 IB HDR AOC Cable
NVIDIA/Mellanox MFS1S00-HxxxV Compatible QSFP56 IB 200Gb/s InfiniBand HDR (High Data Rate) AOC Active Optical Cable
This 200G AOC cable is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand HDR systems. It is compliant with SFF-8665 for the QSFP56 pluggable solution. It provides connectivity between system units with a 200Gb/s connector on both sides. They enable higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers.
LightOptics guarantee 100% NVIDIA/Mellanox MFS1S00-HxxxV Compatible for QM8700/QM8790, MCX653106A-HDAT-SP/MCX653105A-HDAT-SP/MCX653106A-ECAT-SP/MCX653105A-ECAT-SP, which provides power-efficient connectivity for 100G/200G Ethernet, data center and HPC (High-Performance Computing).
Product Details
| NVIDIA/Mellanox® Compatible | MFS1S00-HxxxV | Vendor Name | LightOptics® |
| Form Factor | QSFP56 to QSFP56 | Max Data Rate | 212.5Gb/s |
| Wavelength | 850nm | Cable Length | 3m to 150m customized |
| Modulation Format | DSP/PAM4 | Bit Error Rate (BER) | 1E-13～1E-15 |
| Jacket Material | LSZH | Minimum Bend Radius | 30mm |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Voltage Supply | 3.3V |
| Protocols | QSFP56 MSA, CMIS IEEE 802.3cd 200GBASE-SR4 |
Maximum Power | 4.35W Power Dissipation |
| Storage Temp. | -40 to 85 °C |
Application | 200GBASE-SR4 Ethernet, 200G InfiniBand HDR |
Part Numbers and Descriptions
| Part Number | Description |
| MFS1S00-H003E | Mellanox active fiber cable, IB HDR, up to 200Gb/s, QSFP56, LSZH, black pulltab, 3m |
| MFS1S00-H005E | Mellanox active fiber cable, IB HDR, up to 200Gb/s, QSFP56, LSZH, black pulltab, 5m |
| MFS1S00-H010E | Mellanox active fiber cable, IB HDR, up to 200Gb/s, QSFP56, LSZH, black pulltab, 10m |
| MFS1S00-H015E | Mellanox active fiber cable, IB HDR, up to 200Gb/s, QSFP56, LSZH, black pulltab, 15m |
| MFS1S00-H020E | Mellanox active fiber cable, IB HDR, up to 200Gb/s, QSFP56, LSZH, black pulltab, 20m |
| MFS1S00-H030E | Mellanox active fiber cable, IB HDR, up to 200Gb/s, QSFP56, LSZH, black pulltab, 30m |
| MFS1S00-H050E | Mellanox active fiber cable, IB HDR, up to 200Gb/s, QSFP56, LSZH, black pulltab, 50m |
| MFS1S00-H100E | Mellanox active fiber cable, IB HDR, up to 200Gb/s, QSFP56, LSZH, black pulltab, 100m |
