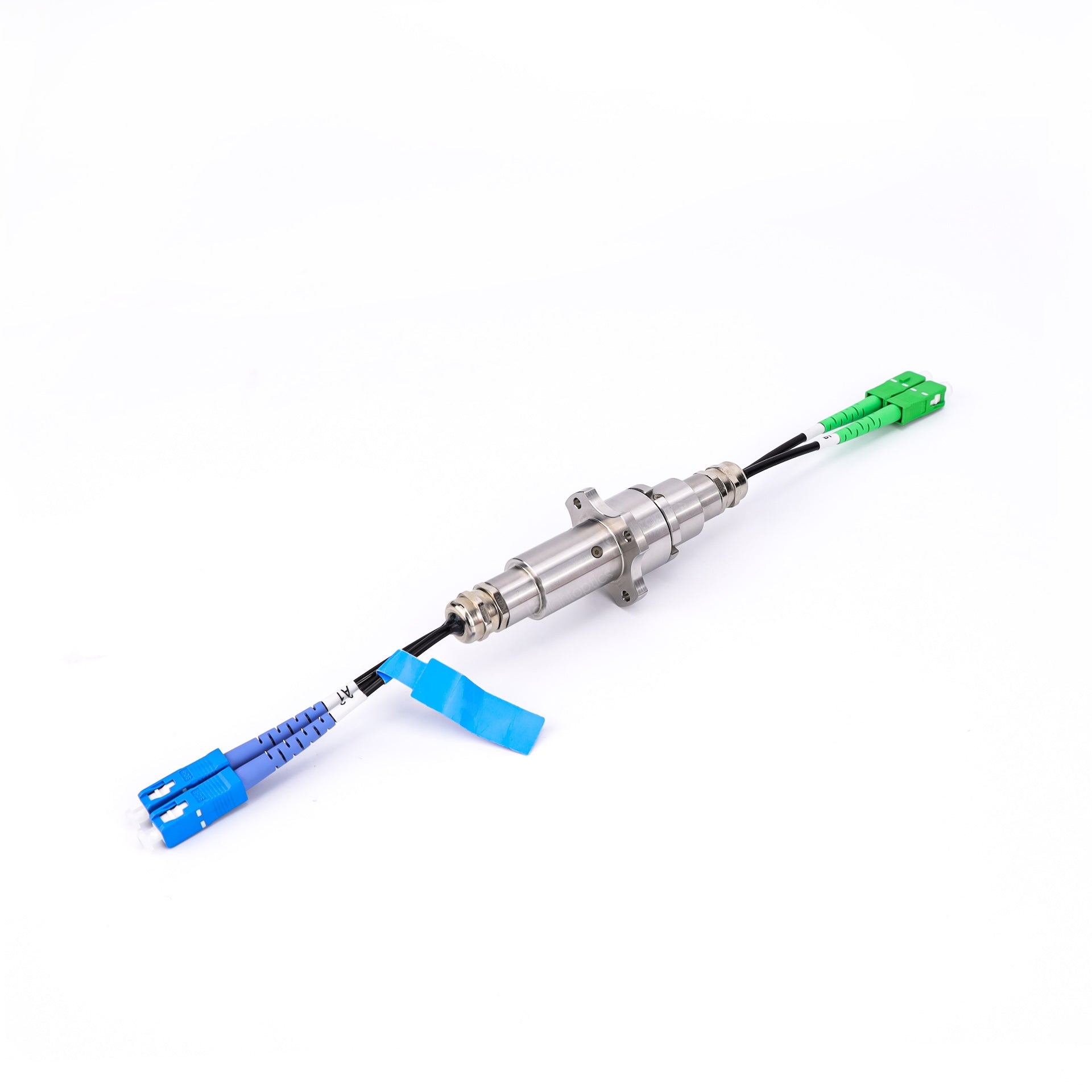

2 Channels Fiber Optic Rotary Joints (FORJ) Singlemode 9/125um
2 Channels High Rotation Speed Fiber Optic Rotary Joints (FORJ) Singlemode 9/125um; SC Fiber Optical Connectors
This 2-channel Fiber Optic Rotary Joint is a currently the smallest multi- channel fiber optic rotary joints in terms of size, with a bore size of only 20mm and the ability to achieve up to 7 channels. It is available in single-mode, multi-mode, or hybrid singlemode and multimode options.
Moreover, the products with environment resistance (shock, vibration, high and lower temperature) grades are also available for configuration.
Technical Performance
|
Indicator Name |
Value |
|
Bandwidth |
±50nm |
|
Wavelength |
1310nm/1550nm(SM);850nm/1300nm(MM) |
|
Insertion Loss (Room Temperature) |
≤3.5dB |
|
Insertion Loss Fluctuation |
≤1.5dB |
|
Return Loss |
≥40dB(SM) |
|
Power Handling |
≤23dBm |
|
Tensile Strength |
≤12N |
|
Rotation Speed |
0 ～ 300rpm (higher speeds can be customized) |
|
Estimated Lifetime |
>100 million revolutions |
|
Operating Temperature |
-20 ～ 60℃ (-45 ～ 85℃ optional) |
|
Storage Temperature |
-45 ～ 85℃ |
|
Weight (excluding tail cable and connector) |
185g |
|
Vibration and Impact Standard |
GJB150 Land Mobile |
|
Protection Class |
IP54(IP65、IP67 optional) |
2 Channels Fiber Optic Rotary Joints (FORJ) SIZE:
