1650nm LC/APC Fiber Optic Reflector Fiber Pigtails Type Ideal Optical for PON OTDR Testing

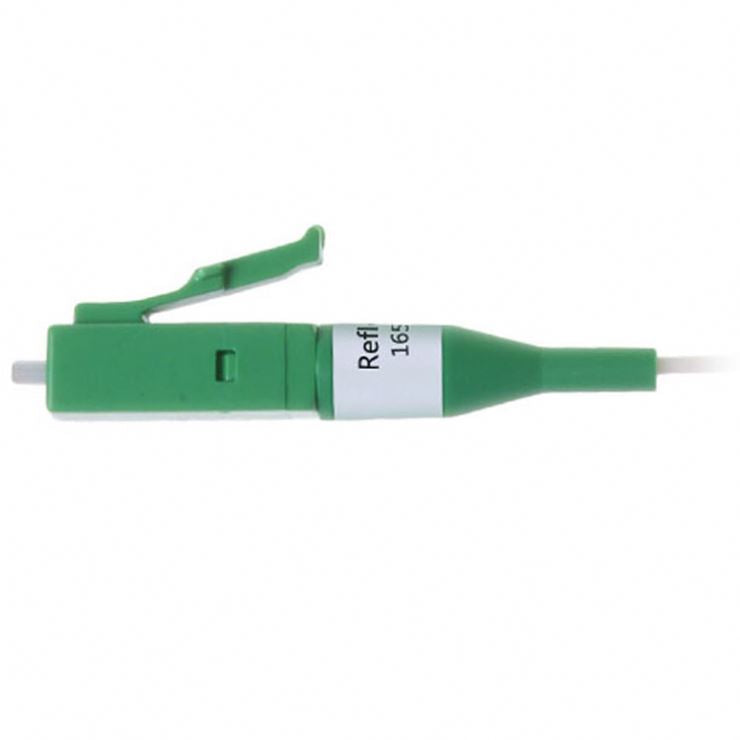

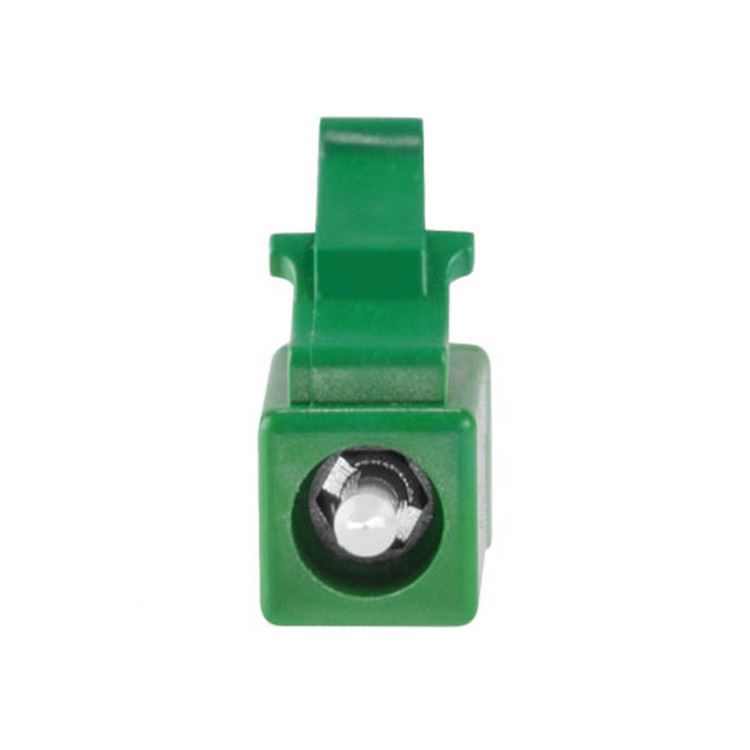

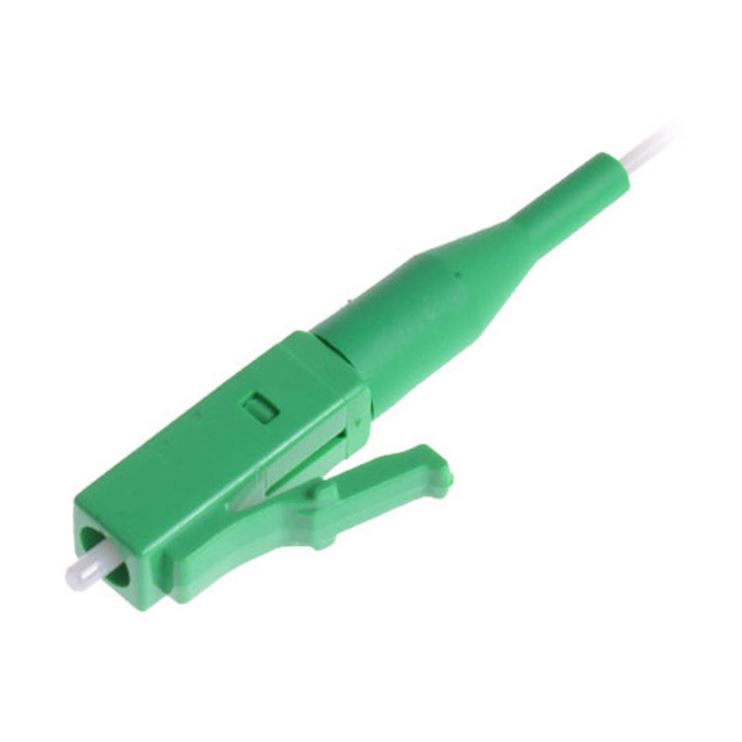

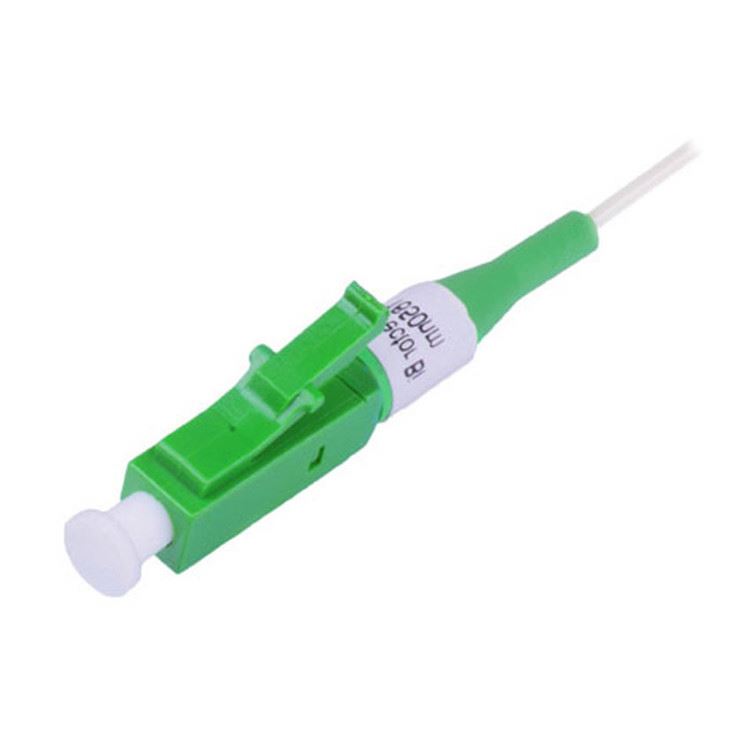

LC/APC  Fiber Reflector Fiber Pigtails Type 1.5m length, ideal Optical for PON OTDR Testing

Pigtails type Fiber reflector, also known as fiber Bragg grating filter, is usually installed in the front end of ONU of optical network. Combined with OTDR equipment, it can realize the point-to-point (PTP) or point-to-multipoint (PTMP) network monitoring of optical link, which can reflect the network abnormality quickly and accurately; The LC pigtail fiber (FBG) reflector provided by LightOptics has the advantages of low insertion loss, high reflectivity, convenient installation, etc., and is an ideal optical device for network link monitoring; It is widely used in PON network, OTDR testing, central computer room testing, FTTX and other fields.

1650nm Fiber Optic Reflector, LC/APC

Parameters Unit Minimum Typical Maximum
Pass band wavelength nm 1260 to 1626
Reflect band wavelength nm 1644.5 to 1655.5
IL: 1260nm to 1360nm dB 1.4
IL: 1460nm to 1600nm dB 1.4
IL: 1600nm to 1625nm dB 2
IL (Reflect band) dB 21
RL: 1260nm to 1360nm dB 35
RL: 1460nm to 1580nm dB 35
RL: 1580nm to 1620nm dB 30
RL: 1610nm to 1620nm dB 30
RL: 1620nm to 1625nm dB 20
RL (Reflect band) dB 0 1
PDL: 1260nm to 1600nm dB 0.4
Ripple (Reflect band) dB 0.6
Max optical power handling dBm 27
Plug times 500
Connector type (I/O) SC/APC or LC/APC
or customized
