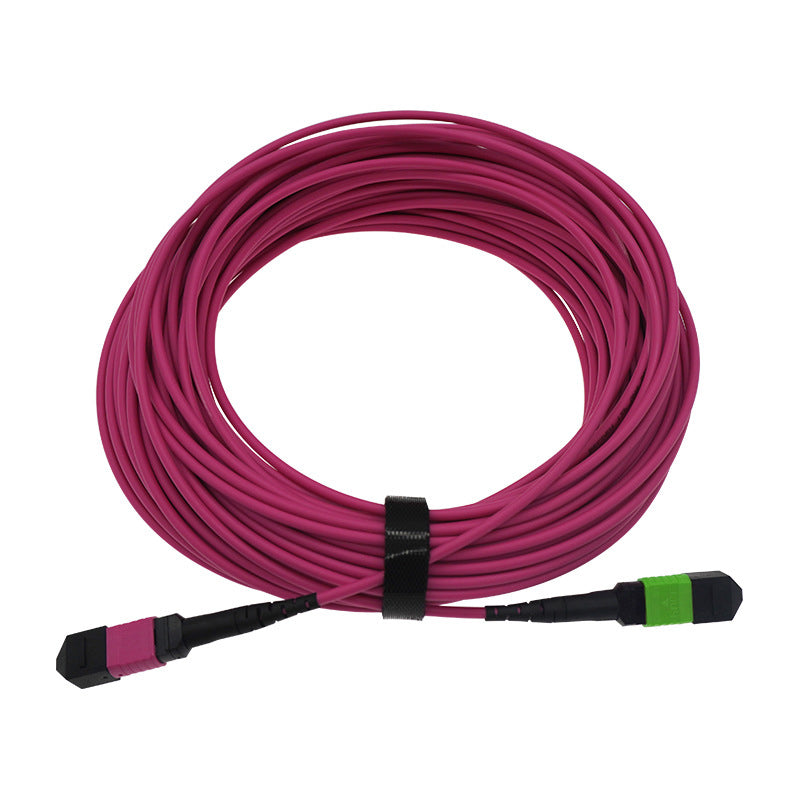

16F MTP/MPO-APC to MTP/MPO-UPC (F/F) 400G Multimode 50/125 OM4 16 Fibers Optic Cable Magenta

Length :

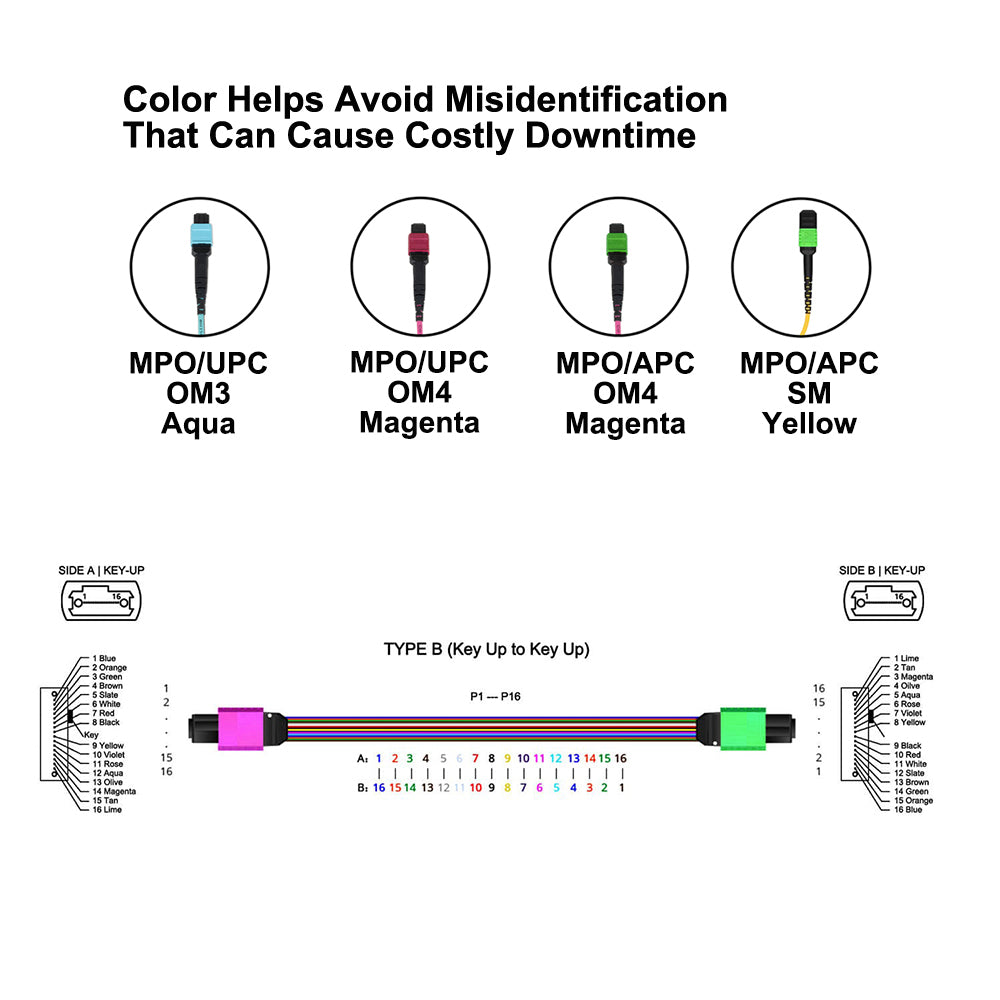

16F MTP/MPO-APC to MTP/MPO-UPC (F/F) 400G Multimode 50/125 OM4 Fiber Optic Cable Magenta;  Type B (cross) Polarity

Each OM4 MPO-16 Fiber Cable that we sell is guaranteed factory new and is produced with high-quality glass fiber cores of known glass manufacturers such as Corning, Fujikura or YOFC. All connector plugs are equipped with a highly reliable zirconia ceramic ferrule from manufacturers such as Amphenol, Diamond, Nissin Kasei or Reichle & De-Massari. Because of that and a high precision manufacturing process, all Patch Cables offered by LightOptics achieve a low input loss and a high return loss. For a low smoke emission in case of fire, all LightOptics Patch Cables are equipped with a flame-resitant, halogen-free LSZH sheathing.

Product Specifications

Connector A MPO Female (pinless) Connector B/C MPO Female (pinless)
Fiber Mode  OM4 50/125 μm Wavelength 850/1300 nm
200G/400G Ethernet Distance 100 m at 850 nm 10G Ethernet Distance 400 m at 850 nm
Multi Mode Class OM4 RoHS Compliancy Status Compliant
Polish Type APC to UPC Minimum Bend Radius 7.5 mm
Insertion Loss 0.35 dB Max. (0.15 dB Typ.) Return Loss ≥ 20 dB
Attenuation at 850 nm ≤ 2.3 dB/km Attenuation at 1300 nm ≤ 0.6 dB/km
Jacket OD 3.0 mm Cable Jacket LSZH
Installation Tensile Load 66 N Long/Short Term Tensile Load 80 N/240 N
Storage Temperature -40°C to 85°C Operating Temperature -10°C to 70°C
