16 Fibers MTP/MPO-APC Female Multimode OM4 Fiber Patch Cord for 400G-SR8

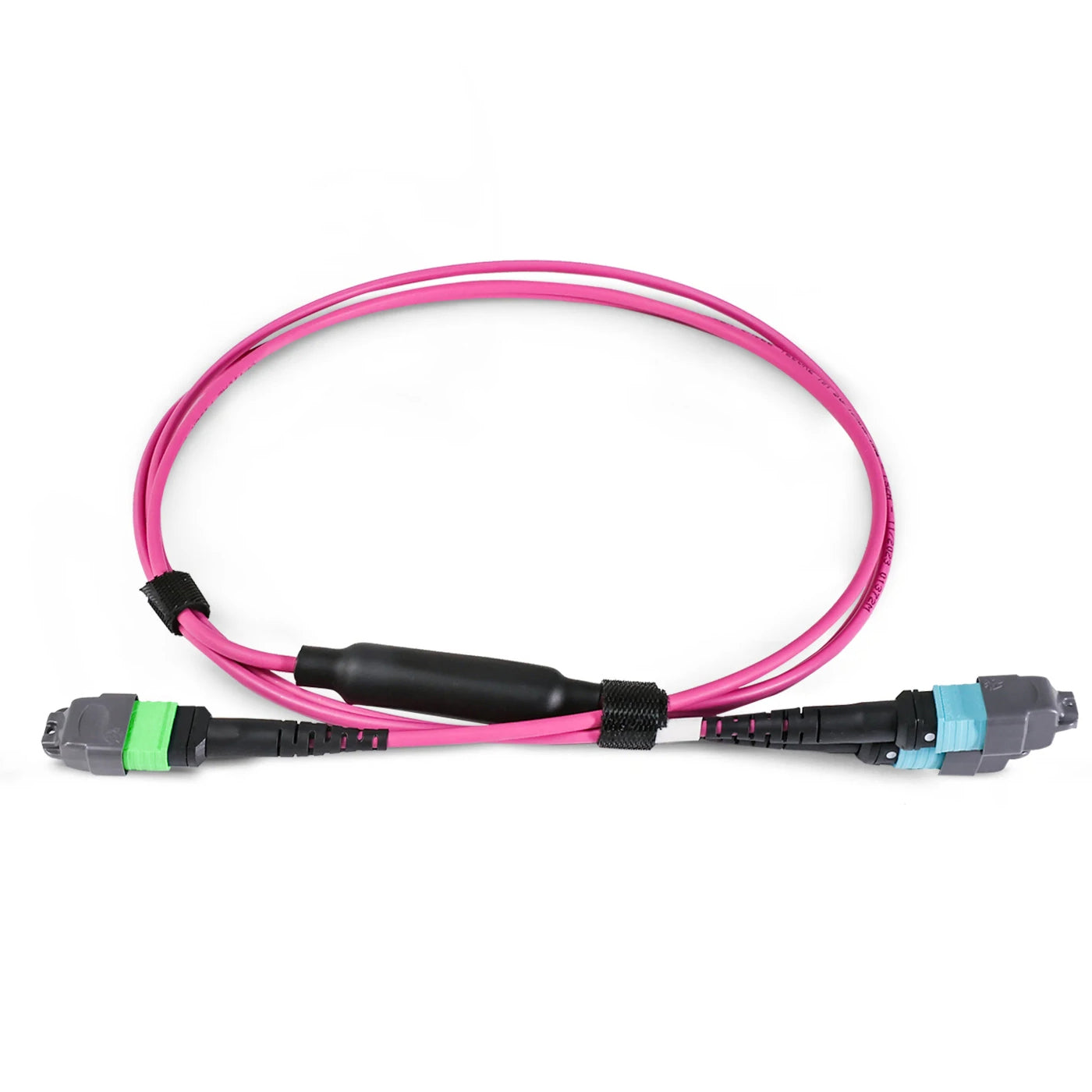

400G SR8 to 2x 200G-SR4 Breakout Fiber Cable, MTP-16/APC to 2xMTP-12/UPC, Multimode 50/125µm, OM4, 3.0mm LSZH Jacket Magenta/Violett, 16 Cores and MTP Connector without Pins (Female); Type-B Polarity
Each OM4 MTP-16 to 2x MTP Harness Cable that we sell is guaranteed factory new and is produced with high-quality glass fiber cores of known glass manufacturers such as Corning, Fujikura or YOFC. All connector plugs are equipped with a highly reliable zirconia ceramic ferrule from manufacturers such as Amphenol, Diamond, Nissin Kasei or Reichle & De-Massari. Because of that and a high precision manufacturing process, all Patch Cables offered by LightOptics achieve a low input loss and a high return loss. For a low smoke emission in case of fire, all LightOptics Patch Cables are equipped with a flame-resitant, halogen-free LSZH sheathing.
Direct Connection Scenario
400G OSFP/QSFP-DD SR8 to 2× 200G SR4 over MPO-16 to 2× MPO-8 breakout cable
200G QSFP-DD SR8 to 2× 100G SR4 over MPO-16 to 2× MPO-8 breakout cable
Connector A | MTP Female (pinless) | Connector B/C | MTP Female (pinless) |
Fiber Mode | OM4 50/125 μm | Wavelength | 850/1300 nm |
200G/400G Ethernet Distance | 100 m at 850 nm | 10G Ethernet Distance | 400 m at 850 nm |
Multi Mode Class | OM4 | RoHS Compliancy Status | Compliant |
Polish Type | APC to UPC | Minimum Bend Radius | 7.5 mm |
Insertion Loss | 0.35 dB Max. (0.15 dB Typ.) | Return Loss | ≥ 20 dB |
Attenuation at 850 nm | ≤ 2.3 dB/km | Attenuation at 1300 nm | ≤ 0.6 dB/km |
Jacket OD | 3.0 mm | Cable Jacket | LSZH |
Installation Tensile Load | 66 N | Long/Short Term Tensile Load | 80 N/240 N |
Storage Temperature | -40°C to 85°C | Operating Temperature | -10°C to 70°C |
