16 Fibers MPO/MTP APC Female OM4 Multimode 50/125 Fiber Patch Cord for 400G SR8

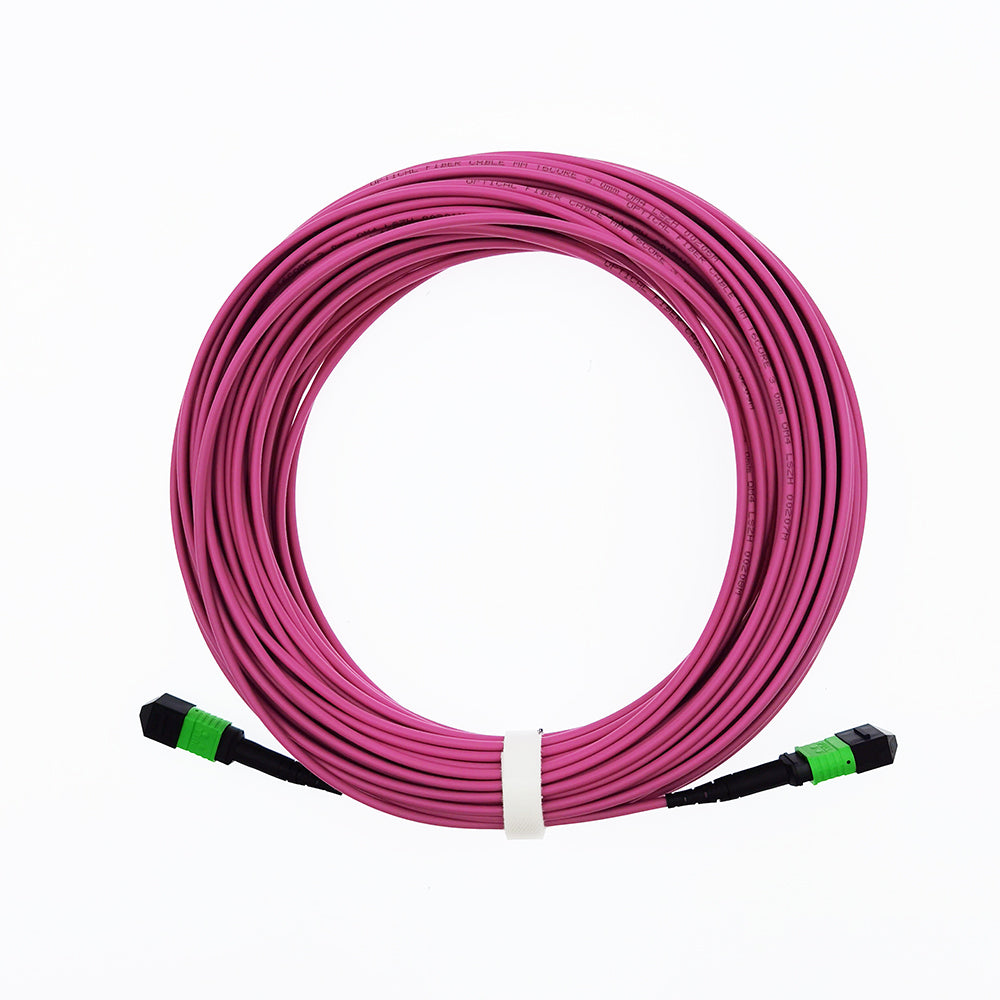

16F MTP/APC to MTP/APC (Female/Female) 400G Multimode 50/125 OM4 Fiber Optic Cable Magenta; Best for 400G SR8 to SR8 links
LightOptics provides the industry-leading density 16-core MTP/MPO fiber optic cable assemblies and 32-fiber (2×16) MTP/MPO fiber optic cable assemblies.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
What is MPO / MTP 16 Connector?

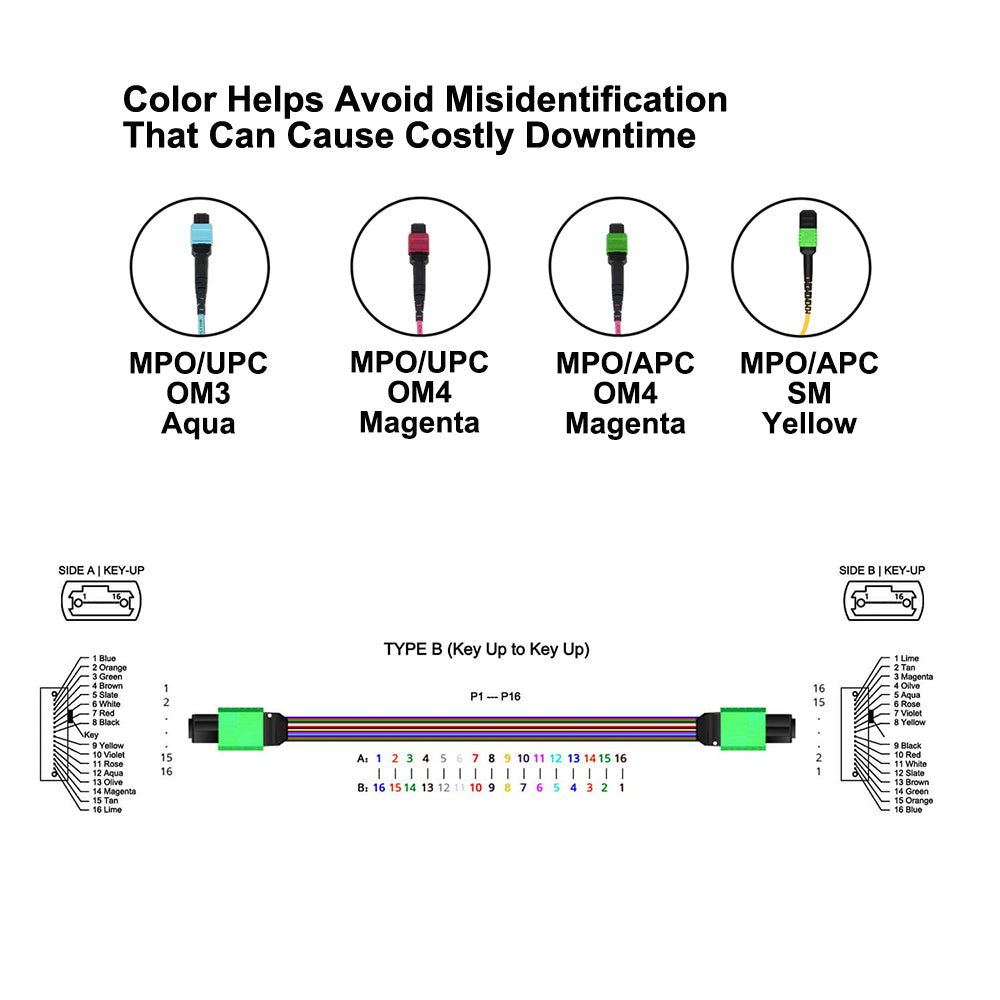

The MPO/ MTP 16 connector family encompasses the 16 fiber MT ferrule, connector hardware,and bulkhead adapters. Utilizing the same external footprint as the existing traditional 12 fiber MT ferrule, the 16 fiber MT is available in one or two rows of 16 fibers and leverages all the proven features and technology of our traditional PPS MT ferrules. The connector hardware offers a unique keying feature as opposed to the centered keying feature on the traditional MPO hardware. This new keying design, standardized by TIA 604-18 (FOCIS 18) and IEC (61754-7-3), ensures proper mating of the MPO-16 / MTP-16 connector without inadvertently mating the 16 fiber connector hardware with standard MPO compliant hardware. MPO/ MTP 16 adapters are available in full or reduced flange mountingand opposed or aligned key orientation.
What is MTP/MPO-16 Connector Application?
- Aggregation of multiple 8 fiber parallel optic transceivers
- Direct coupling to emerging 16 fiber parallel optic links
- (8 Tx / 8 Rx, e.g. 400G QSFP-DD, OSFP)
- High density structured cabling applications
Typical Applications
OSFP/QSFP-DD to OSFP/QSFP-DD Local 400G-SR8 to 400G-SR8
OFSP/QSFP-DD to QSFP Across DC with Trunk 400G-SR8 to 2 x 200G-SR4 (or 2 x 100G-SR4)
OSFP/QSFP-DD to SFP Across DC with Trunk 400G-SR8 to 8 x 50G-SR (or 25G-SR)
| Connector A | MTP Female (pinless) | Connector B | MTP Female (pinless) |
| Fiber Mode | 16 fibers OM4 50/125 μm | Wavelength | 850/1300 nm |
| 40/100G Ethernet Distance | 150 m at 850 nm | 10G Ethernet Distance | 400 m at 850 nm |
| Multi Mode Class | OM4 | RoHS Compliancy Status | Compliant |
| Polish Type | APC to APC | Minimum Bend Radius | 7.5 mm |
| Insertion Loss | 0.35 dB Max. (0.15 dB Typ.) | Return Loss | ≥ 20 dB |
| Attenuation at 850 nm | ≤ 2.3 dB/km | Attenuation at 1300 nm | ≤ 0.6 dB/km |
| Jacket OD | 3.0 mm | Cable Jacket | LSZH |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Storage Temperature | -40°C to 85°C | Operating Temperature | -10°C to 70°C |
