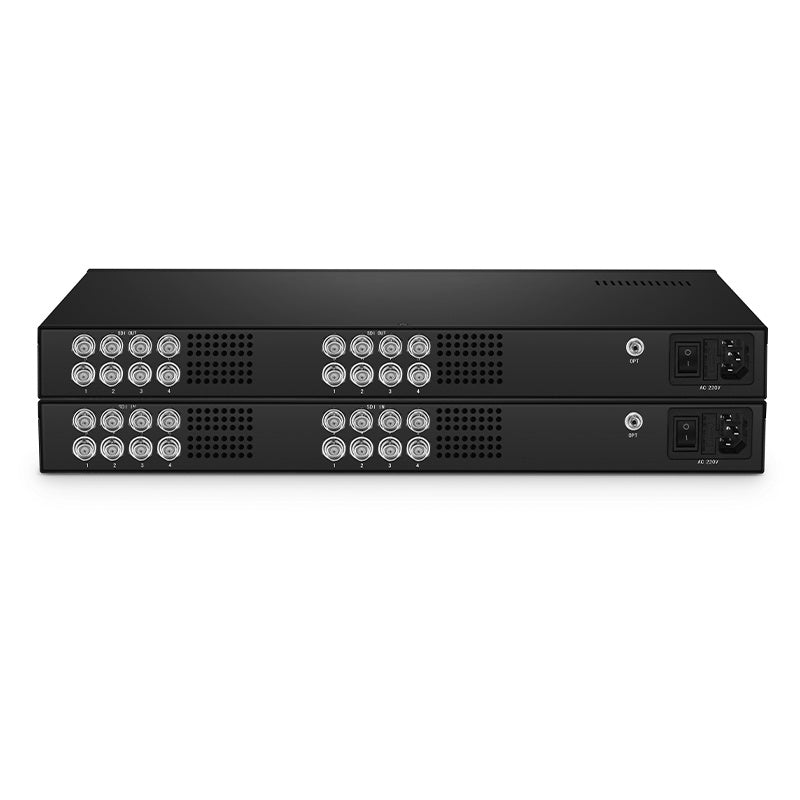

16ch HD-SDI Unidirectional Video & 1x Forward Data Optical Fiber Transmitter and Receiver Set, FC Optical connector, AC 90-264V power supply
Note: The price on the website is for pair. And HD-SDI Fiber Optic Transmitter should be worked with Receiver together.
Widely Compatible with a Variety of Video Signals
- Small Rugged Portable Standalone Package Ideal for Portable Installations
- Supports Full Rate HD-SDI @ 1.5Gbps or Lower SDI or ASI Digital Video
- Transports Embedded Audio Channels as Well as SDI Ancillary Data
- Return Path Serial RS-485 Channel for Controlling Equipment on Tx End
- Link Alarm Indicators on Both Tx & Rx Indicate a Problem with the Fiber
- Plug-and-play Operation with No Software Required for Easy, Immediate Installation
The HD-SDI fiber multiplexers Tx/Rx set could transmit HD/SD-SDI as per SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other telecom/datacom rate, with embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission.
Simple & Quick Operation
You can plug in the power cord, connect the coaxial cable directly to the device without any configuration, which is very simple and convinient to use.
|16-ch Undirectional HD-SDI Video
|Single-mode Simplex FC as default
|1-ch Forward RS485 Data
|1080P 30 Hz
Note: The default connector of this product is FC/UPC, if you want to customize it with other connectors like SC and ST, we will provide the corresponding adapter to meet your needs.
