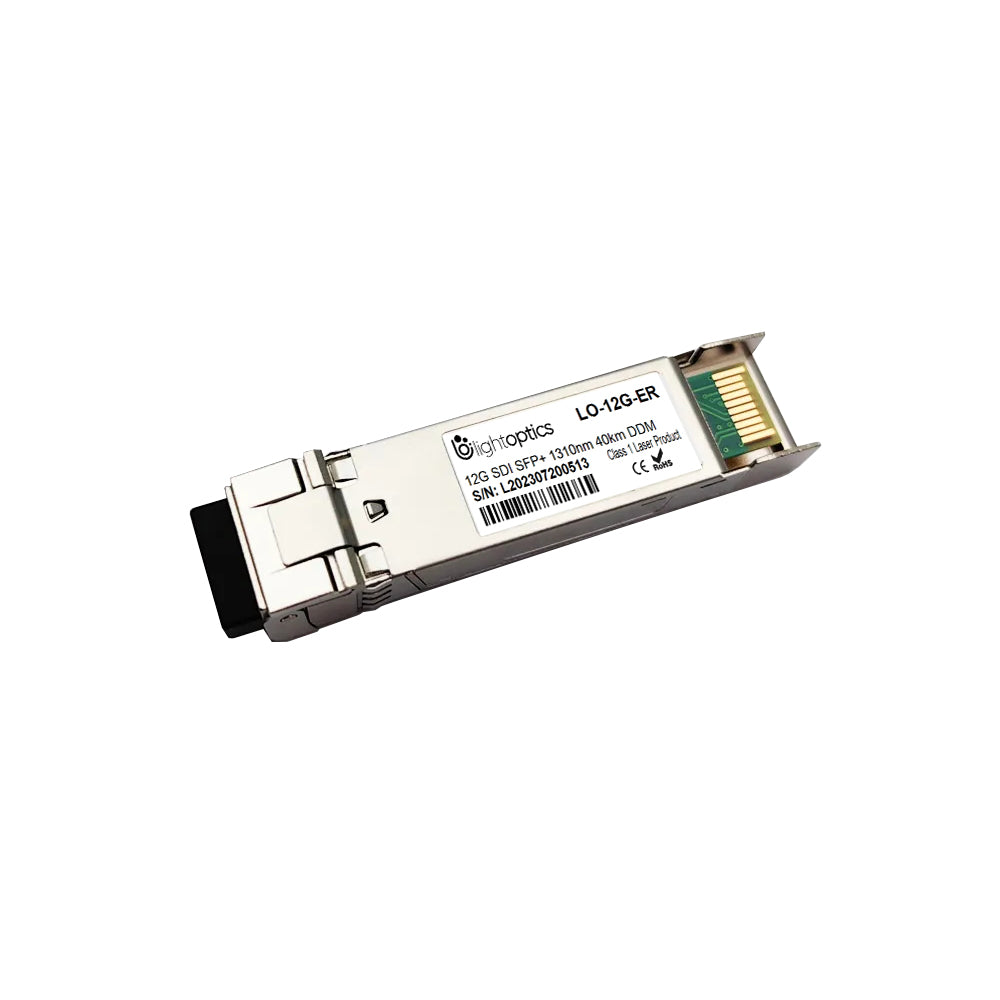

12G UHD VIDEO SDI SFP+ LR 1310nm 40KM Transceiver MSA Standard
12G UHD VIDEO SDI SFP+ WITH DUAL CDR (40km, TX/RX 1310 nm, LC-Duplex, Singlemode,MSA Standard)
Video transceiver is designed to transmit/receive data rates from 50Mbps to 11.88Gbps, compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST 259 (SD-SDI). Video transceiver supports SDI pathological patterns signals. The transceiver includes threse sections: a DFB laser, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), Reclocker, and a MCU controller. The transceiver is compatible with SFP Multi-Source Agreement (MSA).
Features
- SD/HD/3G/6G/12G-SDI SFP Transceiver
- ST 259, ST 292-1,ST 424, ST-2081 and ST-2082 compatible
- Metal enclosure for Lower EMI
- Support pathological patterns for SD-SDI, HD-SDI, 3G-SDI,6G-SDI and 12G SDI
- The module’s receiver contains reclocker
- single 3.3V power supply
Product Details
| Parameter | Specification |
| Type | Video SDI SFP (bidirectional transmission) |
| Distance | 40 km |
| Data rate | 12 Gb/s (compatible 6G, 3G, HD, SD) |
| Wavelength | Tx/Rx 1310 nm |
| Fiber/Cable Type | Singlemode Fiber |
| Connector | LC, Duplex Connector |
| Operating temperature range | Commercial: 0℃ to 70℃ (32℉ to 158℉) |
NOTE: If you need temperature range Industrial: -40℃ to +85℃ (-40℉ to 185℉), please inquire to us.
Be Careful When Choosing Video SFP Transceiver
As video SFP transceiver can be designed with dual transmitters, dual receivers, single transmitter or single receiver, you should be careful when choosing video SFP transceiver. If you need unidirectional transmission, then you can use single SDI SFP transmitter and single SDI SFP receiver for single signal, dual transmitters and dual receivers for dual signals. If bidirectional transmission is required, you can use video SFP transceiver which has transmitter and receiver built in one module. Besides, there are SDI CWDM SFP and SDI BiDi SFP. The SDI CWDM SFP can transmit signals at different wavelengths, and SDI BiDi SFP can mix and transmit multiple wavelengths simultaneously over the same fiber. Both of them are cost-effective solutions. What’s more, the choice of fiber optic cable must be compatible to the type of video SFP transceiver.
