12G SDI Video to Fiber Extender Mini Converters

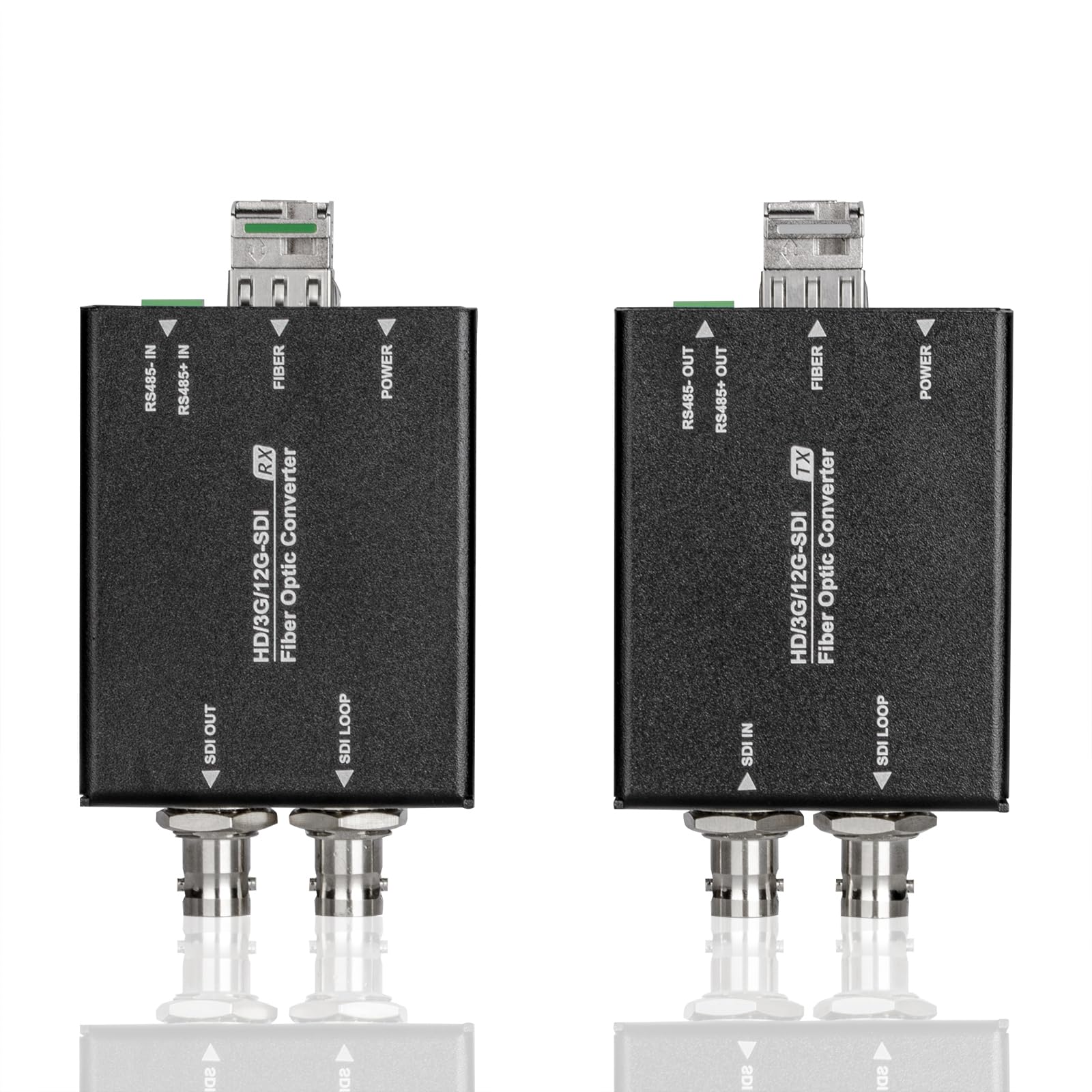

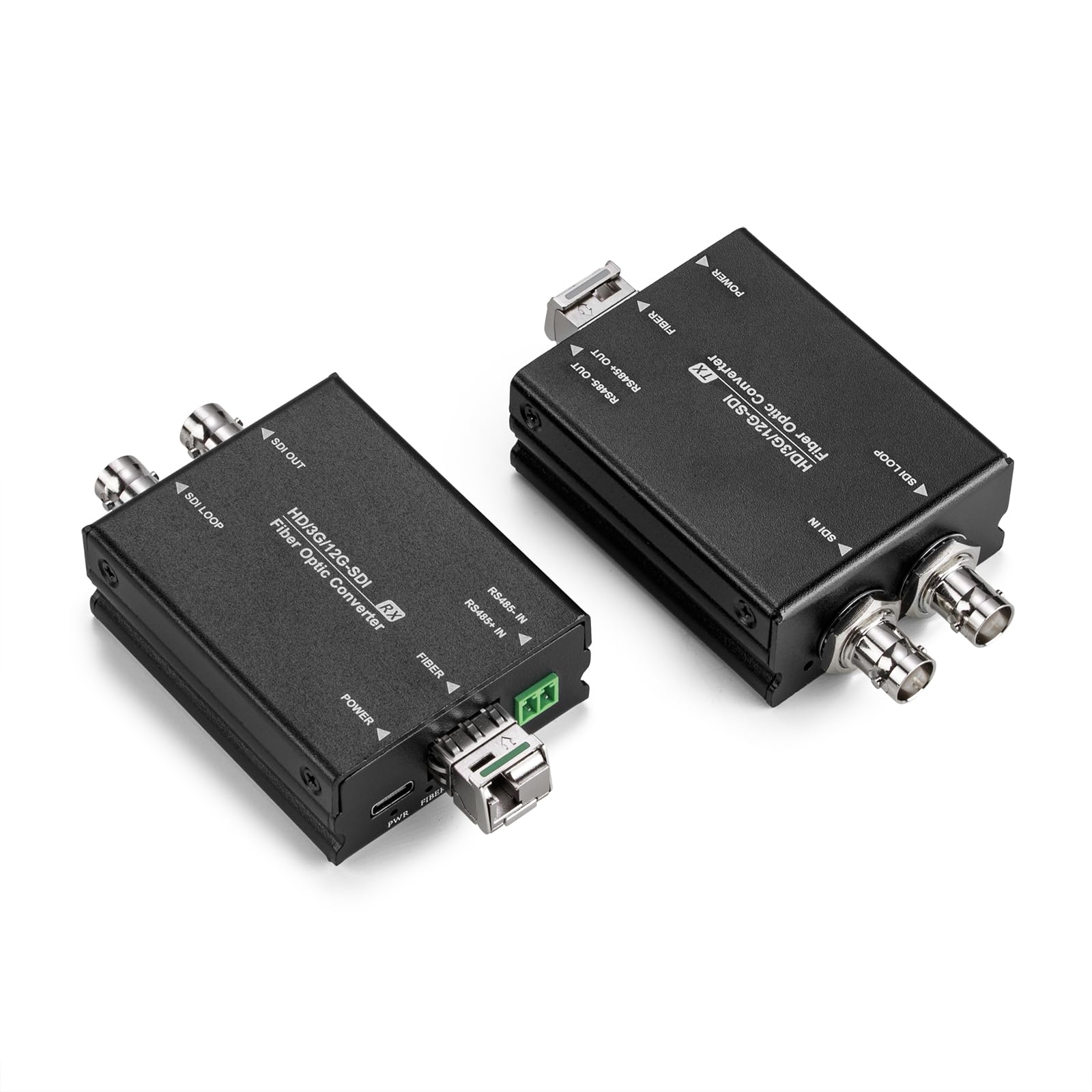

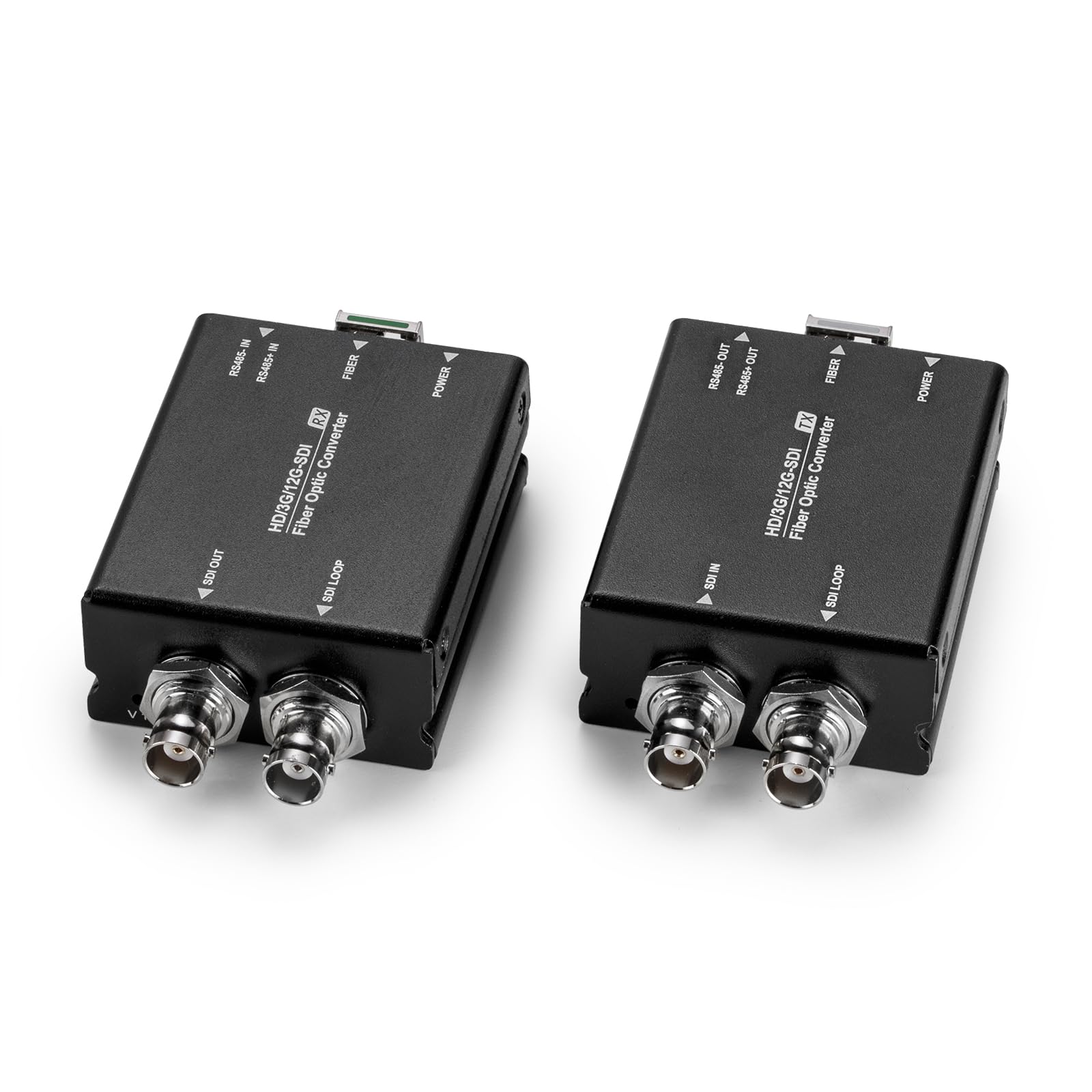

12G SDI to Fiber Extender Mini Converter, Transmitter & Receiver Kits
This 12G Fiber Extenders can convert SDI to optical fiber and optical fiber to SDI in both directions at the same time, you can even have different video standards going in each direction. The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. You can install any standard 3G, 6G or 12G‑SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.
The SDI Fiber Extender is only 2.87*1.73*0.71 inch in size, it’s so small and can install on cameras, camera car or camera dolly. The 12G SDI Fiber converter support 12G/6G/3G/HD-SDI with 8-channel audio embedded, resolution up to 3840*2160@60Hz, Automatic reclocking 270Mbit/s - 12Gbit/s and it is compatible with all the SDI cameras on market. It’s widely used in films recording, Live events, broadcasting, Industrial monitoring and Stadium etc.
Product Features
- Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD); compatible with DVB-ASI and AES10 (MADI)
- Both transmitter and receiver have clock recovery function; (clock restorer can reduce high frequency jitter and completely regenerate data with pure low jitter clock)
- The clock restorer is locked to 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or 1.001 frequency division sub rate and SMPTE rate of 270Mbps
- Signal input has automatic cable equalization (EQ) function, output has drive (CD) function
- Support plug and play 12G SDI SFP transceiver, which can replace optical module corresponding to different distances or interfaces according to the actual site requirements
- Support single-mode single-fiber/dual-fiber transmission distance
- Support status light display
- Support USB device power supply
- Plug and play, without debugging
