12 Fibers MTP/MPO to 6x LC Duplex Multimode OM3 Fiber Breakout Cable

$33.13
Length :
Polarity :
$33.13
Tags:

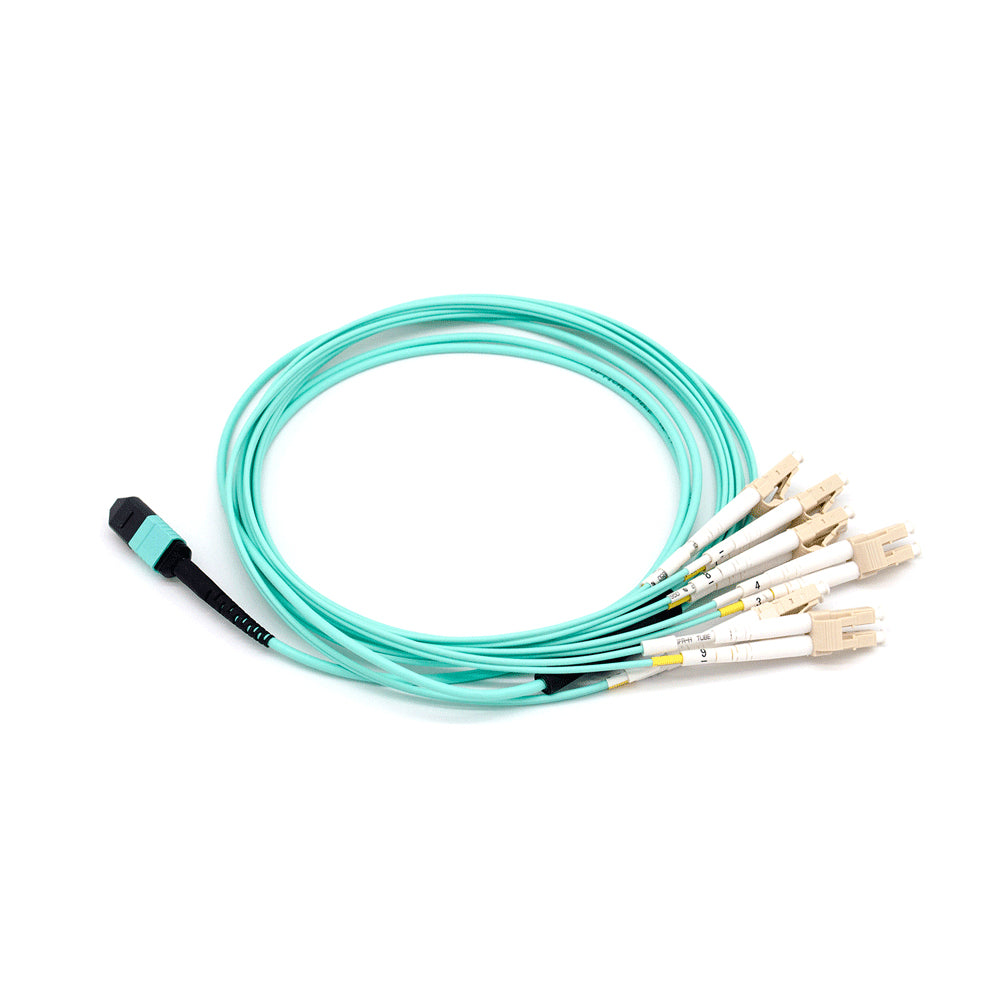

12 Fibers MTP to 6x LC duplex Multimode OM3 Fiber Breakout Cable is factory pre-terminated 50/125 Multimode OM3 MTP to 6xLC Duplex fiber harness cable, which offers the user the advantage of consistent quality, much faster installation, and simpler cable management. The OM3 MTP harness fiber cable is comprised of one MTP female connector and 6 LC UPC duplex fiber connectors on the other end. The connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection. These breakout cables are perfect when your space is limited, which allows converting a standard fiber optic network to a high-density MTP network, and making a powerful fiber connection.

Please note: The MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors. For 12 Fibers Breakout cable, Polarity C is standard, Polarity A and B are available.

Features
• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high return loss
• MTP female to 6 x LC duplex harness cable
• Save Time & Space
• Laser-Optimized multimode OM3 fiber
• Optimized performance – available in elite MTP and discrete premium connector
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
• LSZH Jacket by Default

Product Specifications

Connector A MTP Female (pinless) Connector B 6x LC/UPC Duplex
Fiber Mode  12 fibers OM3 50/125 μm Wavelength 850/1300 nm
Polish Type (MTP) APC Polish Type (LC) UPC
Minimum Bend Radius 7.5 mm RoHS Compliancy Status Compliant
Insertion Loss (LC) ≤ 0.2 dB Return Loss (LC) ≥ 30 dB
Insertion Loss (MTP) 0.35 dB Max. (0.15 dB Typ.) Return Loss (MTP) ≥ 20 dB
Attenuation at 850 nm ≤ 2.3 dB/km Attenuation at 1300 nm ≤ 0.6 dB/km
Jacket OD 3.0 mm Cable Jacket LSZH
Installation Tensile Load 66 N Long/Short Term Tensile Load 80 N/240N
Storage Temperature -40°C to 85°C Operating Temperature -10°C to 70°C
