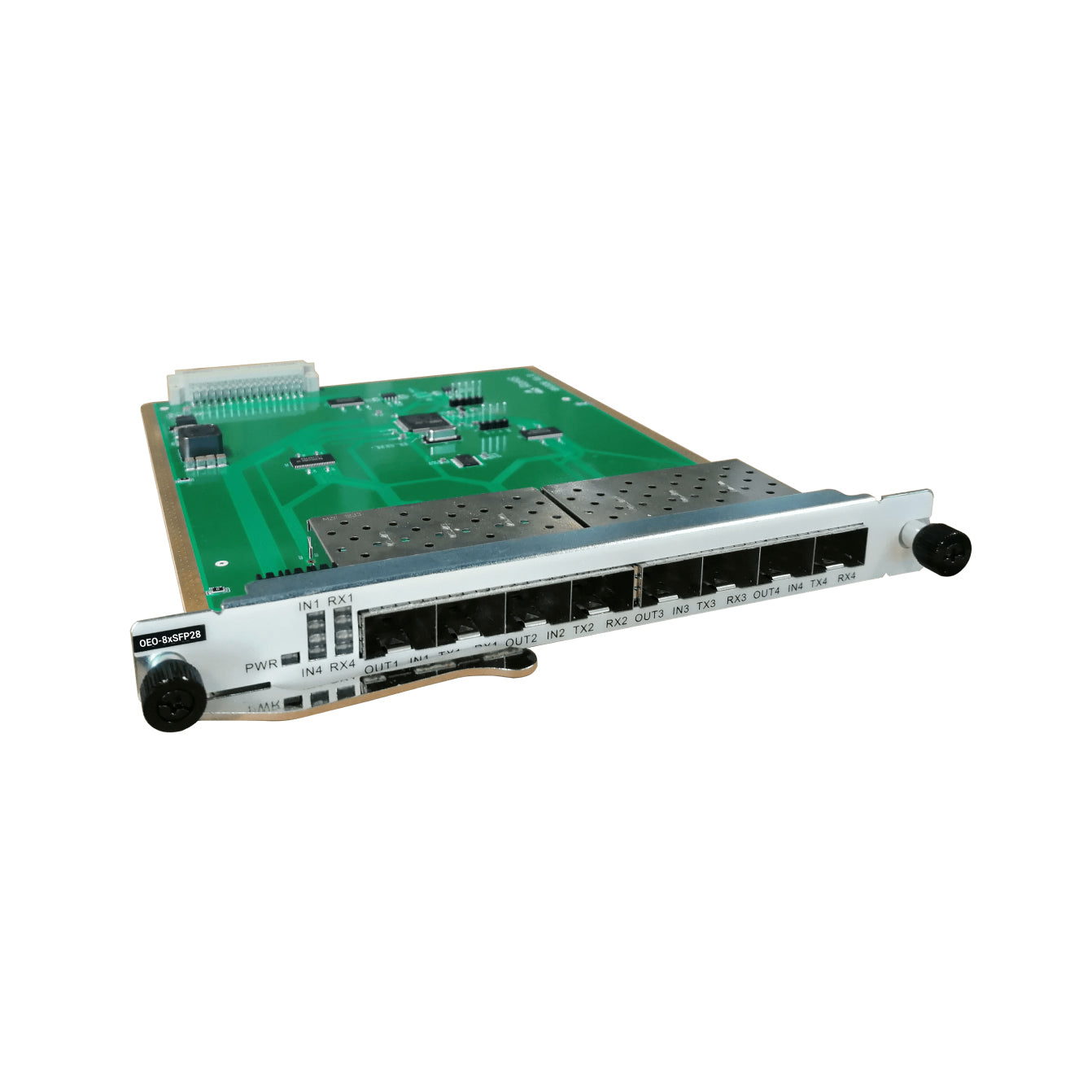

OTN6500 10G/25G SFP+ SFP28 CWDM DWDM OTN Transponder
What is OTU Transponder?
Transponders are used to enable point-to-point connections over long distances when the client rate matches the optical wavelength. In cases where the client rates are lower than the optical wavelength.
What is Muxponder?
A muxponder is the element that sends and receives the optical signal on a fiber in much the same way as a transponder except that the muxponder has the additional functionality of multiplexing multiple sub-rate client interfaces onto the line interface.
Main difference between Transponder vs Muxponder
Transponder
N in N out: N* Low-speed client-side services==> N* Standard wavelength optical signals
Muxponder
N in One out: N* Low-speed client-side services ==> 1* High-speed standard wavelength optical signal
10G SFP+ CWDM DWDM Transponder Functional Structure
10G/25G SFP+/SFP28 Transponder Specifications
| Parameter | Technical | |
| Card type | 10G OTU-3R | 25G OTU-3R |
| interface | Client-side interface: 4 or 5 SFP+ hot-pluggable, compatible with SFP | Client-side interface: 4 SFP28 hot-pluggable |
| WDM-side interface: 4 or 5 SFP+ hot-pluggable, compatible with SFP | WDM-side interface: 4 SFP28 hot-pluggable | |
| Line mode | Supports transparent transmission of any type of service in four 42M~11.3G rate ranges, and converts four service optical signals into four WDM standard wavelength optical signals. | Supports transparent transmission of any type of service in four 16G~32G rate ranges, and converts four service optical signals into four WDM standard wavelength optical signals. |
| Relay mode | Support 42M~11.3G wavelength electrical relay. | Support 16G~32G wavelength electrical relay. |
| Support service type | GE, 10GE | 25GE |
| 1/2/4/8/10G FC | 16G FC(compatible 32G) | |
| STM-16/64 | ECPRI, CPRI 10 | |
| CPRI-2/3/6/7 | ||
| WDM technology | Support CWDM: 18 waves | Support CWDM: 18 waves |
| Support DWDM: C band 50GHz 96 waves | Support DWDM: C band 50GHz 80 waves | |
| Network management function | Support real-time monitoring of the port working state, including transmitting optical power and receiving optical power, temperature, etc. | Support real time monitoring of the port working state, including transmitting optical power and receiving optical power, temperature, etc. Support port loop back and port shutdown. |
| Power consumption | 16W (max, including transceiver) | 16W (max, including transceiver) |
| MTBF | ＞100000 hours | ＞100000 hours |
