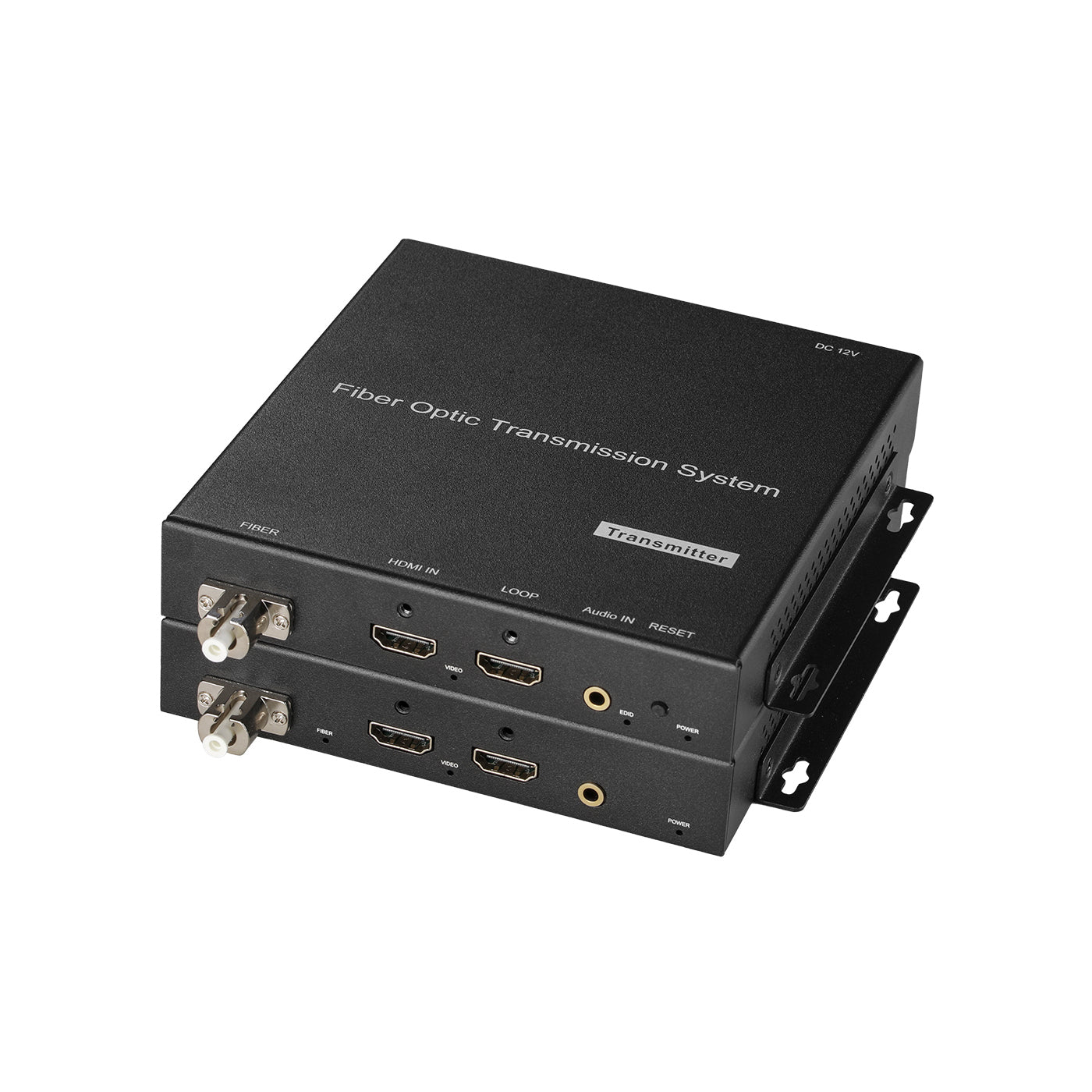

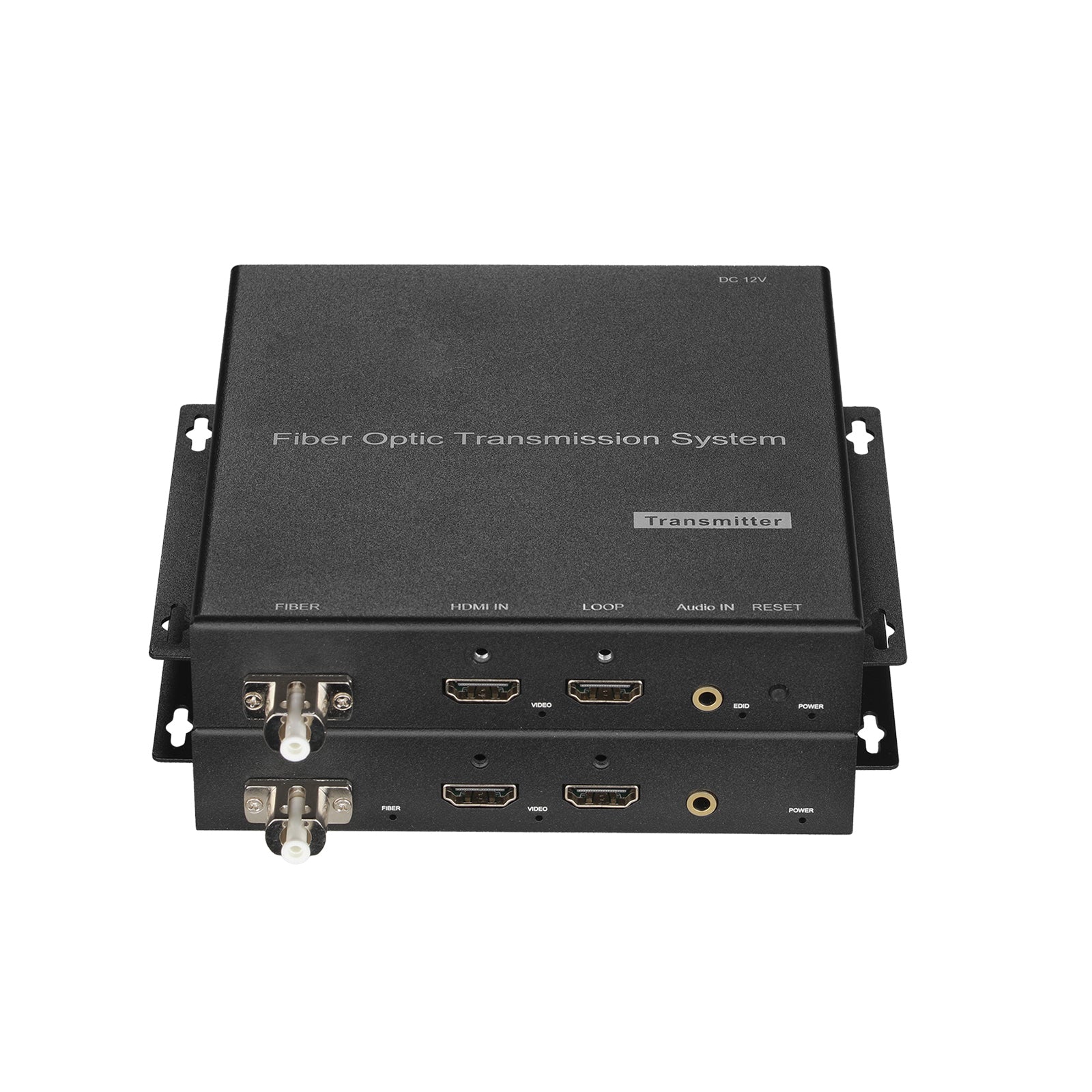

1080P HDMI Extender 10km LC Simplex Singlemode Fiber Transmission
This 1080P HDMI Extender can transmit 1 channel 4K60Hz HDMI video with local loop out,1 channel forward 3.5mm audio through one core optical fiber,realizing no delay,no compression,high-quality signal extension of 10km.
Our 1080P 4K60Hz HDMI fiber optic converter is designed with a local audio and video sharing function on the transmitter and receiver,the computer provides a signal source to the transmitter, it can also distribute the HDMI signal to the display for signal monitoring and achieve dual video output on the receiver side. It is more flexible and stable in use.
Taking into account the audio functions of various display terminals in the market, such as TVs with built-in speakers, LED large screens and projectors do not have built-in speakers, so we designed HDMI audio intelligent embedding and de embedding functions on the device, achieving video background music embedding and video synchronization audio de-embedding, saving users the cost of adding other HDMI audio embedding and de-embedding equipment,it more flexible and stable in use.
In EDID working mode we designed a RESET button, which support EDID working mode switching (pass-through mode\manual EDID learning). The device defaults to pass-through mode,the highlight of pass-through mode is its high bandwidth, breaking through the standard specifications of 4K60Hz HDMI,such as 7680*1080P 60Hz, 3840* 2400P 60Hz and other professional video field resolutions.In some special scenarios, EDID can also be used for manual learning to consolidate resolution and prevent signal source changes.
Our 1080P 4K60Hz HDMI extender features of excellent,high temperature,cold resistance,can effectively prevent strong electromagnetic wave radiation interference,lightning shock and power surge,communication quality is stable and reliable.
Fiber parameter |
|
Rate |
40Gbps |
Optical module parameter |
Single fiber single mode 10km |
Fiber connector |
LC(default)SC/ST/FC(optional) |
Video parameter |
|
HDMI standard |
HDMI 2.0 |
Video bandwidth |
18Gbps |
Video resolution |
480i ~1080p50/60Hz,4Kx2K@24/30Hz,4kx2k@60Hz |
Color space |
RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
Maximum pixel clock |
594MHZ |
Effective cable length |
≤10M |
HDMI female |
|
Audio parameter |
|
Sampling frequency |
48K |
Sampling depth |
24bit |
Dynamic bandwidth |
96db |
Total harmonic distortion (THD) |
-88db |
Signal to noise ratio(SNR) |
96db |
Audio input/output impedance |
600Ω |
Signal level |
VPP 3.5V |
3.5mm stereo audio socket |
|
Signal type |
Stereo audio |
Mechanical parameter |
|
Material |
Aluminum alloy |
Product size |
156*141*26mm |
Net weight of product |
0.55g/Pcs, 1.1KG/ pair |
Way to install |
Desktop type |
Package |
|
Package material |
Kraft paper |
Weight |
1.36kg |
Package size |
340*252*55mm |
Environment |
|
Working temperature |
-20°C ~70°C |
Storage temperature |
-40°C ~85°C |
Relative humidity |
From 5 to 95% (non-condensing) |
MTBF |
> 100,000 hours |
