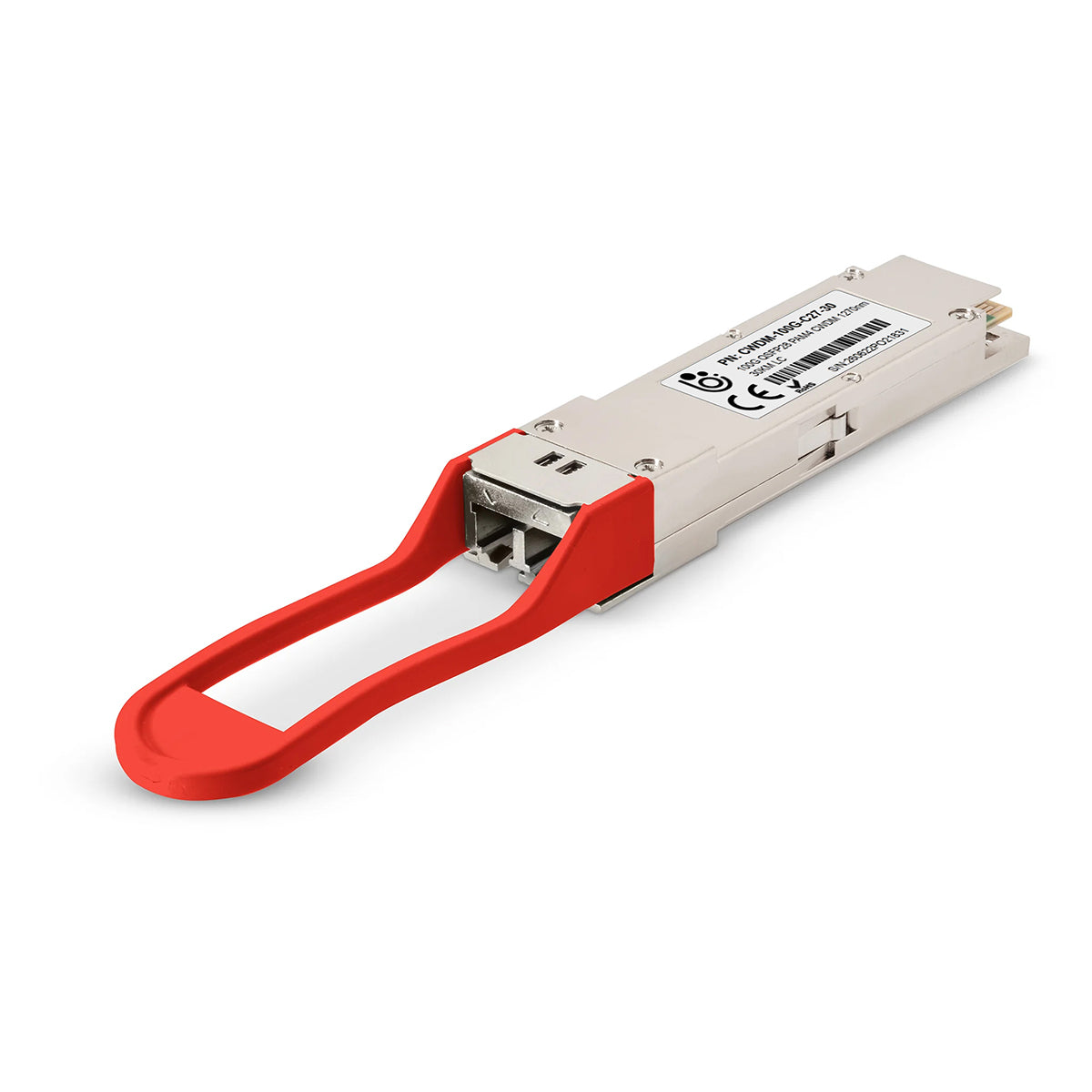

100G CWDM 1270nm-1330nm Single Lambda QSFP28 30km LC Duplex Transceiver
100G CWDM 1270nm-1330nm Single Lambda QSFP28 30km LC Duplex Transceiver (4 wavelengths options: 1270nm, 1290nm, 1310nm, 1330nm)
This 100G CWDM Single Lambda QSFP28 transceiver enables cost-effective long-reach connectivity with wavelength flexibility. Supporting 30km over single-mode fiber with FEC using PAM4 modulation, this 4-channel CWDM module delivers 15.8 dB link budget at 106.25 Gbps. LC/UPC duplex connector for extended CWDM network deployments.
Product Specifications
| Part Number | CWDM-100G-Cxx-30 | Vendor Name | LightOptics® |
| Form Factor | QSFP28 | Max Data Rate | 100Gbps Single Lambda |
| Wavelength | 4 wavelengths options: 1270nm, 1290nm, 1310nm, 1330nm | Max Distance | 30km |
| Connector | Duplex LC | Transmitter Type | DFB Laser |
| Cable Type | Single-Mode Fiber (SMF) | Receiver Type | PIN |
| Average Link Budget | 15.8 dB | Receiver Sensitivity | Min: -13.8 dBm; Max: -3.4 dBm |
| DDM Support | YES | FEC Support | YES |
| Protocols | 100G Lambda MSA, CAUI-4, QSFP28 MSA, SFF-8636 (Management Interface for 4-lane modules) | Operation Temperature | 0 to 70°C (32 to 158°F) |
