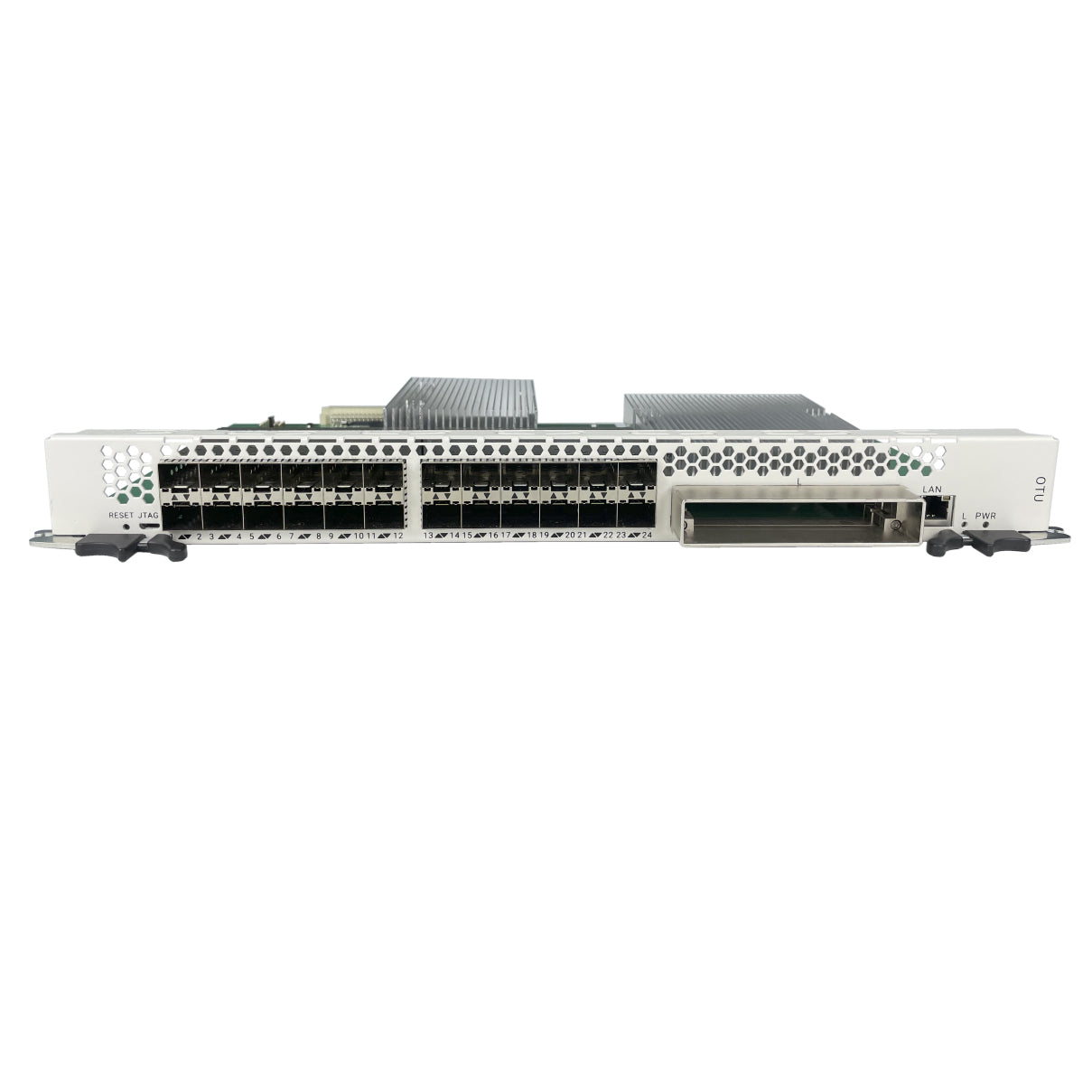

20x 10G SFP+ to 1x 200G CFP2 Muxponder


This 100G/200G CFP muxponders provide a high-quality solutions for transmissions such as insufficient margins of the existing systems and long optical cable transmission distances.

It is a 12 channels 10G or 24 channels 10G Ethernet signal aggregation to meet the high-bandwidth interconnects of optical transmission and data center. After the 100G/200G coherent optical module completes the photoelectric conversion to the C-band coherent signal, to realize the input and output of the coherent signal.

It follows the G.709 protocol multiplexing mapping and framing processing.


  • The 100G CFP muxponder supports up to 12 channels of 10G Ethernet client side and 1+1 protection, line side 1 channel 100G coherent module access.
  • The 200G CFP muxponder supports up to 24 channels of 10G Ethernet client side and 1+1 protection, line side 1 channel 200G coherent module access.
  • Both CFP muxponders support OTN services such as OTU1, OTU2e, OTU3, OTU4, etc.
  • Both CFP muxponders support OTN package, mapping and overhead defined by G.709.
  • The 100G/200G line side interfaceadopts polarization multiplexing and QPSK/QAM modulation to reduce the transmission baud rate and reduce the complexity of 100G/200G transmission components. The Coherent DSP adopts high-performance HD-FEC, SD-FEC soft decision first-generation and second-generation error correction technologies.
  • They provide the tunable wavelengthfunction, and the wavelength modulation can be realized through the tunable CFP module, which can be set within the 96 wavelengths range of the H-band 50GHz Facilitate service opening and realize flexible wavelength allocation.


System Parameter Technical Index
Maximum capacity 24x 10G unidirectional & bidirectional transmission
Wavelength (frequency) range DWDM: 1529.16nm-1567.14nm(191.3THz-196.05THz)
Modulation DP-QPSK@100G, DP-16QAM@200G, DP-16QAMps@200G, DP-QPSK@200G.
Dispersion tolerance ±40000ps/nm@100G
OSNR tolerance <12dB@100G QPSK, <21dB@200G DP-16QAM, <16dB@200G DP-16QAMps, <13.5dB@200G DP-QPSK.
Service access types OTN: ODU2, ODU2e
Ethernet: 10GbE
FC port/FICON: 8G/10G/16G
Dimensions (mm) 367(W)*40(H)*200(D)
Working temperature -10℃ ~ 70℃
Storage temperature -40℃ ~ 80℃
Relative humidity 5% ~ 95% no condensation
Safety and EMC Compliance with FCC, UL, CE, TUV, CSA standards.
Power consumption <85W
Weight 2KG
