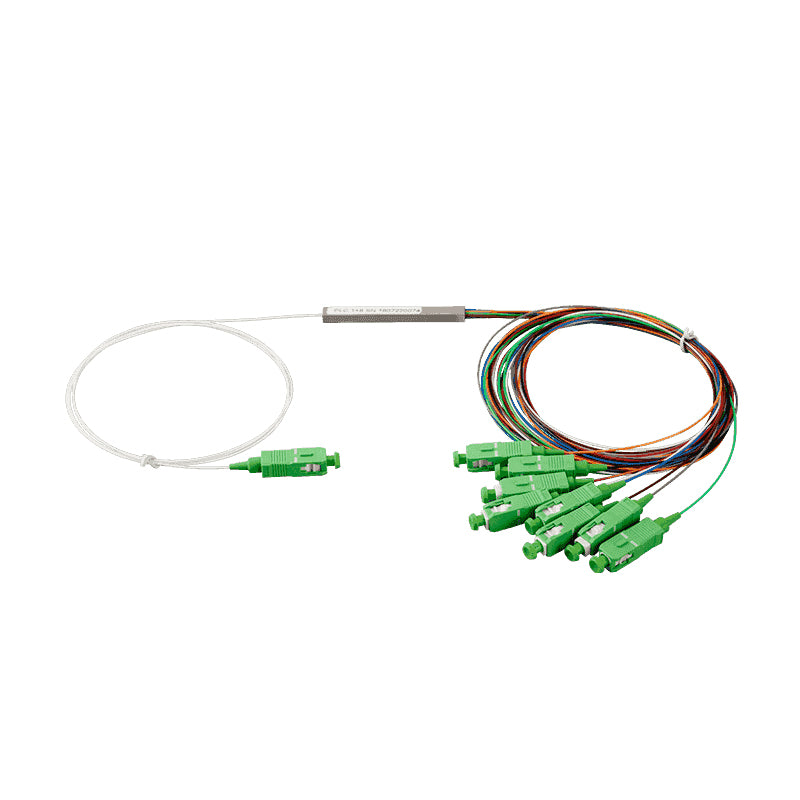

1x8 PLC Splitter FTTH optical splitter in Mini blockless steel tube

Input Connector :
Output Connector :

Planar lightwave circuit (PLC) optical splitter is a passive advanced components that perform the optical signal splitting. 1:8 splitter plays an important role in FTTH Networks, also referred to as GPON optical splitter ; 1:8 inch splitter is the best choice for large variety of telecom and sensor technology applications as this GPON Splitter is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations (ONU).

Mini Blockless steel tube PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It’s mainly used for various connection and distribution boxes or network cabinets.


  • Low Insertion loss and Low PDL
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: From 1260nm to 1650nm
  • Wide Operating Temperature: From -40℃ to 85℃
  • High Reliability and Stability
  • Stability Telecordia GR-1221 and GR-1209

Fiber Optic Splitter Specifications

Type 1×2 1×4 1×8 1×16 1×32 1×64
Working Bandwidth (nm) 1260-1650
Insertion Loss (dB) Max w/o connectors 3.8 7.1 10.2 13.5 16.8 20.2
Insertion Loss (dB) Max with connectors 4.1 7.4 10.5 13.8 17.1 20.5
Wavelength Dependent Loss (dB) Max. 0.2 0.3 0.4 0.6 0.8 1
Return Loss (dB) Min.(APC) 55
Temperature Dependent Loss(dB) Max 0.5
Stability in Hot Environment (dB/°C) Max 1
Uniformity (dB) Max 0.6 0.6 0.8 1.1 1.5 2
Polarization Dependent Loss (dB) Max 0.2 0.2 0.2 0.3 0.3 0.3
Orientation (dB) Min 50
Power (mW) Max 300
Steel Tube Size(mm) 60*7*4 60*7*4 60*7*4 60*12*4 80*20*6 100*40*6
Optical Fiber SMF-28, G657A1, G657A2 or customized
Input / Output length 1meter standard or customized length
Cable Color White or customized
Cable Diameter 250um or 900um
Connector SC APC, SC UPC or without connector
Operating Temperature () -40 to 85
Storage Temperature () -40 to 85
Standard Telcordia GR-1209, Telcordia GR-1221, IEC 61300, IEC 6175321

PLC Splitter Dimensions as below: (Unit: mm)

Fiber Optic Splitter Specifications


How to use PLC Splitter

How to use PLC Splitter
